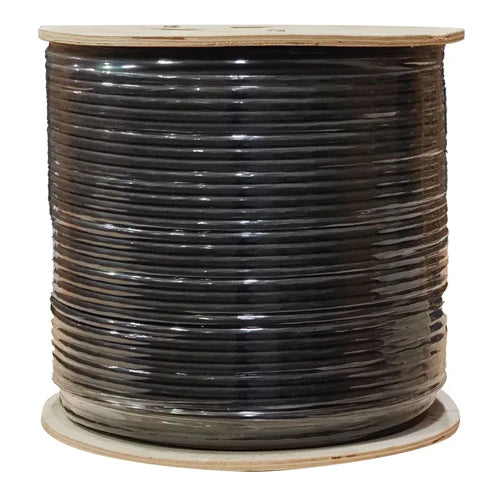

Cat7 Riser Rated Shielded (S/FTP) Solid Bare Copper Cable 1000 Ft

Color: Black

Black Red Blue White Green Yellow Orange Purple Gray

⚠️

Special Order — Pallet Orders Only

This product is available by MOQ.

Minimum order is 1 pallet (60 boxes)

Delivery time 20 business days

All 9 colors available

$369.00 USD

Coming Soon

Shipping calculated at checkout.

For more discount call us at 301-825-9890

🚀

LEAD TIME

Min. 20 Days

📦

MIN. ORDER

1 Pallet / 60 Boxes

🚚

SHIPPING

Calculated
Separately

🎨

COLORS

All 9 Available

View Product Details

Description

Description

Feature	Value	Description / Notes
Cable Standard	Cat7 / ISO/IEC 11801	Exceeds TIA/EIA-568 Cat6A requirements
Max Data Speed	10 Gbps	10GBase-T Ethernet, stable and full-duplex
Bandwidth	850 MHz	Supports high-frequency signal transmission
Max Distance	100 Meters (328 ft)	Per channel at full 10G performance
Conductor	23 AWG Solid Bare Copper	100% pure copper; 4 pairs
Shielding	S/FTP	Individual foil per pair + overall braided shield
Jacket Rating	CMR (Riser)	slows vertical flame spread
Jacket Material	Low-Smoke PVC	Reduced smoke emission in case of fire
Spool Length	1,000 ft (304.8 m)	Reel in Box included; sequential footage markings
PoE Support	PoE++ (802.3bt) up to 90W	Superior heat dissipation via shielding
Operating Temperature	0°C to +60°C	Installation range: -20°C to +75°C
Connector Compatibility	GG45 / TERA / RJ45	Backward compatible with RJ45 patch panels
Colors Available	9 Colors	Black, Blue, White, Red, Green, Yellow, Orange, Purple, Gray
Bend Radius	4× OD (min.)	During installation; 8× OD during operation
Impedance	100 Ω ± 15%	Characteristic impedance at 1–600 MHz
Attenuation	≤ 20.8 dB/100m at 100 MHz	Per pair, meets Cat7 standard
NEXT (Crosstalk)	≥ 65 dB at 100 MHz	Near-End Crosstalk, per pair

Sign up for our newsletter to receive the latest updates on new cable items, exclusive deals, and industry insights straight to your inbox. Don’t miss out – join our community today!

Feature

Value

Description / Notes

Cable Standard

Cat7 / ISO/IEC 11801

Exceeds TIA/EIA-568 Cat6A requirements

Max Data Speed

10 Gbps

10GBase-T Ethernet, stable and full-duplex

Bandwidth

850 MHz

Supports high-frequency signal transmission

Max Distance

100 Meters (328 ft)

Per channel at full 10G performance

Conductor

23 AWG Solid Bare Copper

100% pure copper; 4 pairs

Shielding

S/FTP

Individual foil per pair + overall braided shield

Jacket Rating

CMR (Riser)

slows vertical flame spread

Jacket Material

Low-Smoke PVC

Reduced smoke emission in case of fire

Spool Length

1,000 ft (304.8 m)

Reel in Box included; sequential footage markings

PoE Support

PoE++ (802.3bt) up to 90W

Superior heat dissipation via shielding

Operating Temperature

0°C to +60°C

Installation range: -20°C to +75°C

Connector Compatibility

GG45 / TERA / RJ45

Backward compatible with RJ45 patch panels

Colors Available

9 Colors

Black, Blue, White, Red, Green, Yellow, Orange, Purple, Gray

Bend Radius

4× OD (min.)

During installation; 8× OD during operation

Impedance

100 Ω ± 15%

Characteristic impedance at 1–600 MHz

Attenuation

≤ 20.8 dB/100m at 100 MHz

Per pair, meets Cat7 standard

NEXT (Crosstalk)

≥ 65 dB at 100 MHz

Near-End Crosstalk, per pair
