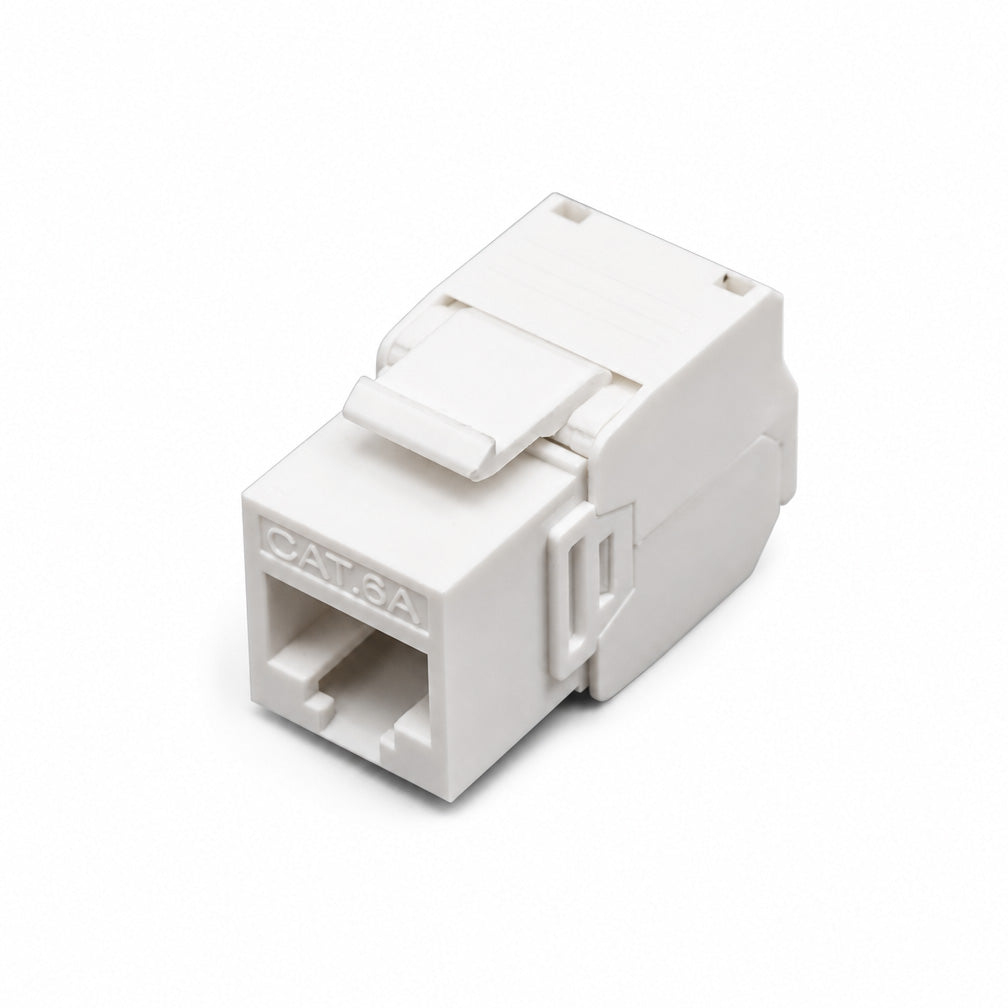

Ethernet Keystone jacks

About Ethernet Keystone jacks

Keystone jacks are essential connection points in structured cabling systems. This collection focuses on modular jacks designed to snap easily into wall plates, patch panels, and surface boxes. Keystone Jacks help create clean, organized network terminations while allowing flexibility during installation or future changes.

They are commonly used in offices, data rooms, and residential networks where reliable connections matter. With standardized sizing and varied compatibility, keystone jacks simplify cable management and support orderly network layouts without clutter or confusion

Specification:

Feature	Value / Spec	Standards Compliance	Professional Notes
Termination Type	Punch Down (110) or Toolless	TIA/EIA-568-B.2	Toolless is faster; 110-punch is more secure for permanent links.
Data Performance	Cat5e, Cat6, or Cat6a	IEEE 802.3ab/an	Match the jack category to your cable to avoid bottlenecks.
Shielding	UTP or STP (Die-cast)	ISO/IEC 11801	Shielded jacks must be used with STP cable to maintain grounding.
Housing Material	Fire-Retardant ABS Plastic	UL 94V-0	Ensure high-quality plastic to prevent cracking during punch-down.

.

Standardized Modular Design

Keystone jacks follow a uniform shape that fits most wall plates and panels. This allows easy replacements or upgrades without rewiring entire setups.

Secure Cable Termination

Each jack provides firm contact points for Ethernet conductors. This helps maintain a stable signal flow and reduces the risk of loose connections.

Clean Network Organization

Using keystone jacks keeps cables neatly terminated. This improves airflow, simplifies troubleshooting, and maintains a professional appearance.

Wide Cable Compatibility

Keystone jacks support various Ethernet cable types. This makes them suitable for both small network builds and larger structured cabling projects.

Ethernet Keystone Jacks

These jacks terminate twisted-pair network cables. They are widely used for data connections in wall outlets and patch panels.

Shielded Keystone Jacks

Shielded versions support grounded installations. They help reduce interference when used with shielded network cables.

Toolless Keystone Jacks

Toolless designs allow fast termination without punch-down tools. They are useful for quick installations and field adjustments.

Color-Coded Keystone Jacks

Color options help identify different network segments. This makes system organization easier during maintenance or expansion.

Office Network Outlets

Keystone jacks create clean Ethernet ports in workspaces. This supports reliable connectivity for computers and office equipment.

Patch Panels

They allow flexible port layouts in racks. Keystone jacks simplify rearranging connections without replacing entire panels.

Residential Networking

Home networks benefit from tidy wall-mounted Ethernet ports. Keystone jacks keep cables hidden and organized.

Data and Equipment Rooms

Structured cabling setups rely on keystone jacks for clear labeling and easy cable management.

Build clean and organized network connections with dependable Keystone Jacks from TS Cables.

Can you use Cat5e cable with Cat6 keystone jacks?

Yes, Cat5e cable can be terminated in Cat6 jacks, but performance will be limited to Cat5e capabilities.

Does the Keystone Jack you buy matter?

Yes, selecting the right jack ensures proper bandwidth support, reduced crosstalk, and compliance with network standards.

How to install an RJ45 keystone jack?

Use a punch-down tool or a toolless mechanism to terminate conductors onto IDC terminals, following T568A or T568B wiring schemes.

How to punch a keystone jack?

Align conductors to the color-coded slots and press them into the IDC terminals with a punch-down tool to ensure secure contact.
