Cat5e Shielded Cables

About Cat5e Shielded Cable

Cat5e shielded cables are built for environments where electrical noise can disrupt network signals. This category focuses on cables that include an added shielding layer to protect data transmission from interference. Cat5e shielded cables are commonly used in industrial spaces, commercial buildings, and areas with heavy electrical equipment.

The shielding helps maintain signal stability while supporting standard Cat5e performance. These cables work well for structured cabling systems that require cleaner data flow without stepping up to higher cable categories.

Specification:

Feature	Value / Spec	Standards Compliance	Professional Notes
Max Data Speed	1 Gbps	TIA/EIA-568-B.2	Reliable for basic gigabit data in noisy areas.
Bandwidth	100 MHz	IEEE 802.3ab	Optimized for 100/1000BASE-T applications.
Max Distance	100 Meters	ISO/IEC 11801	Maintains speed over the full standard run.
Wire Gauge	24 AWG	ASTM B3	Flexible; requires shielded RJ45 connectors.
Shielding	F/UTP (Foil Shield)	IEC 61156-5	Protects against low-to-mid frequency EMI.
PoE Support	PoE / PoE+	IEEE 802.3af/at	Foil helps dissipate heat better than UTP.
Common Uses	Industrial Controls	RoHS / REACH	Used in assembly lines and security systems.
Grounding	Drain Wire Required	TIA-607-C	Must be grounded to a shielded jack/patch panel.
Durability	Standard Jacket	UL-444	Shielding adds slight stiffness compared to UTP.

Electromagnetic Interference Protection

The shielding layer in Cat5e shielded cables blocks outside electrical noise. This keeps data signals stable near motors, power lines, and machinery.

Consistent Data Transmission

Shielding helps maintain balanced signal flow. This reduces packet loss and improves overall network reliability in demanding environments.

Grounding Support

Shielded Cat5e cables allow proper grounding. This helps safely direct unwanted electrical energy away from the data conductors.

Durable Cable Construction

Thicker jackets and reinforced shielding improve resistance to physical stress. These cables hold up well in tight conduits and equipment rooms.

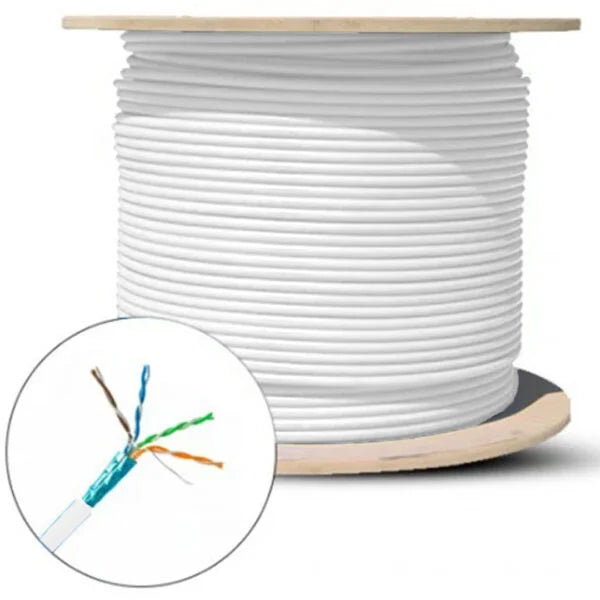

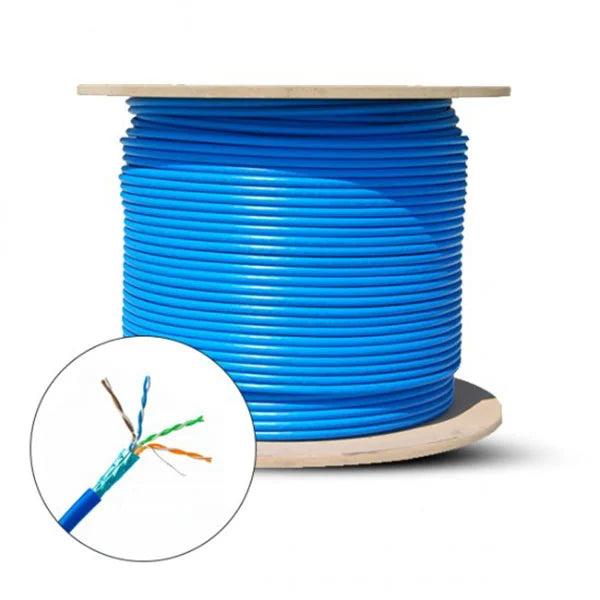

Foil-Shielded Cat5e Cable

Foil shielding wraps around all twisted pairs. This type offers broad interference protection for general commercial installations.

Braided Shielded Cat5e Cable

Braided shielding provides stronger mechanical protection. It performs well in areas with constant electrical noise.

Direct Burial Shielded Cat5e

These cables include moisture-resistant jackets. Shielding adds extra protection for underground or outdoor runs.

Industrial Facilities

Factories and plants benefit from Cat5e shielded cables where machines generate constant electrical interference.

Commercial Buildings

Office spaces with dense wiring layouts rely on shielded cables to maintain signal clarity across long runs.

Server and Equipment Rooms

Shielded Cat5e helps prevent cross-interference between closely packed cables and electronic devices.

Outdoor and Underground Runs

Direct burial shielded versions perform well where cables face moisture and environmental exposure.

Strengthen network stability with premium Cat5e shielded cables from TS Cables, built for interference-heavy environments.

How to install an RJ-45 on shielded Cat5e cable?

Use shielded RJ-45 connectors, maintain foil contact with the connector body, and ground the connector through compatible jacks or panels.

How to install shielded Cat5 connectors?

Strip the jacket carefully, keep shielding intact, seat pairs correctly, and crimp using a tool designed for shielded connectors.

How to wire shielded Cat5 keystone?

Terminate wires following T568A or T568B standards and ensure the shielding makes contact with the grounded keystone housing.

Is direct burial Cat5e shielded worth it?

Yes, it provides added protection against moisture and electrical noise for outdoor or underground installations.

What's the difference between shielded Cat5e cable and unshielded?

Shielded cable blocks interference, while unshielded cable relies only on twisted pairs for noise control.

When do you need shielded Cat5 connectors?

Shielded connectors are required whenever shielded cable is used to maintain grounding continuity.

When to use shielded Cat5e cable?

Use it in areas with high electrical interference, industrial equipment, or dense cable environments.

Where to buy shielded Cat5 cable?

Shielded Cat5e cable is available through networking suppliers and manufacturers like TS Cables.

Why use shielded Cat5e cable?

It improves signal reliability, reduces interference, and supports stable network performance in challenging installations.
