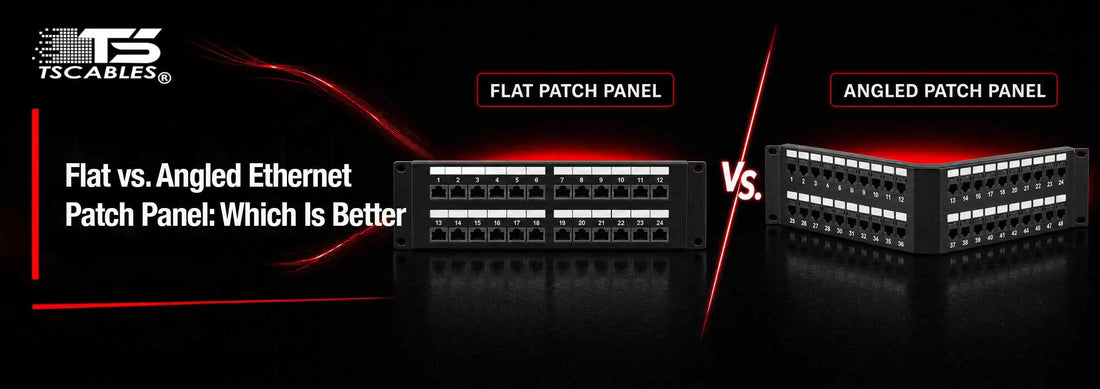

Flat vs. Angled Ethernet Patch Panel: Which Is Better

Choosing the right patch panel can make a network rack easier to install and maintain. Flat and angled Ethernet patch panels both organize network connections, but their layouts change how cables enter, bend, and leave the rack. That small difference can matter in a busy data center.

A flat panel keeps ports facing forward, while an angled panel guides cables toward the sides. Rack depth, cable density, maintenance access, and available space should all guide your choice. The right panel keeps connections tidy without creating unnecessary cable stress. A careful choice also makes future upgrades much easier for technicians.

Understanding Angled and Flat Ethernet Patch Panels

The main difference starts with port direction. One panel keeps connections straight across the front, while the other directs them sideways. That basic design affects cable routing, rack organization, service access, and space use. Let’s explain how each panel works and where each design fits best.

Angled Ethernet Patch Panel

An angled Ethernet patch panel places its ports at a slant rather than facing directly forward. This design guides connected cables toward the sides of the rack. The angled layout can reduce the need for sharp cable turns near the panel.

It also provides a cleaner path for horizontal cable management in dense installations. Technicians often use this design in racks with many connections because cables can move naturally into side-mounted managers.

Flat Ethernet Patch Panel

A flat Ethernet patch panel keeps its ports facing straight ahead. Connected cables usually extend forward before moving into a cable manager. This familiar design works well with standard rack layouts and simple installations.

Flat panels are also easy to label and access from the front. They can suit smaller networks where cable density remains moderate, and space management is straightforward.

Flat vs. Angled Ethernet Patch Panel: A Detailed Comparison

Both designs perform the same basic networking job, but their physical layouts create different installation experiences. The table below brings the main differences together. These details make it easier to match the panel style with your rack environment.

Comparison Factor	Flat Ethernet Patch Panel	Angled Ethernet Patch Panel
Port orientation	Ports face directly toward the front of the rack. This keeps the panel layout simple and familiar for most installations.	Ports sit at an angle and guide connected cables toward the rack sides for easier routing.
Cable routing	Cables usually travel forward before entering horizontal or vertical cable managers. Extra routing space may be required in dense racks.	Cables move naturally toward side managers. This can reduce cable congestion around the front of the panel.
Rack appearance	Creates a straight and uniform front-facing appearance. Cable bundles may extend farther forward before reaching management hardware.	Produces a more organized appearance because cables move sideways soon after connection.
Space requirements	Works well where front clearance is available, and cable density remains manageable.	Can save front-facing cable space in high-density installations by directing cables sideways.
Cable bend control	Cables may require additional routing space to maintain suitable bend paths.	The angled position often creates a smoother path from the port into side management.
Maintenance access	Front ports are easy to see and reach during routine service work.	Ports remain accessible, although dense side routing may require more attention during servicing.
High-density networks	Can become crowded when many cables connect across several rack units.	Often suits dense environments because cable exits spread toward the sides instead of stacking forward.
Cable management	May require separate horizontal managers to control cable movement and prevent clutter.	Often pairs well with vertical managers that receive cables directly from angled ports.
Airflow	Front cable bundles can sometimes occupy more space around rack equipment. Proper management keeps airflow paths clear.	Side-directed cables can reduce front congestion and leave equipment faces more open.
Installation	Familiar layout makes installation simple for technicians using standard rack practices.	Requires planning around side managers and nearby equipment before installation begins.
Label visibility	Labels generally sit directly above or below forward-facing ports and remain easy to read.	Labels remain visible, but the angled layout may change viewing angles slightly.
Best fit	Smaller networks, simple racks, offices, and installations with moderate cable counts often suit flat panels.	High-density racks, data centers, and installations with heavy cable bundles often benefit from angled panels.
Cost considerations	Often provides a straightforward option when the rack has enough space for cable management.	May cost more in some product ranges but can reduce extra management hardware requirements.
Future expansion	Works well when spare rack space and cable management capacity remain available for future connections.	Provides cleaner routing as connection counts increase, especially with strong vertical cable management.
Overall choice	A practical option for simple layouts where forward-facing connections are easy to manage.	A strong option for dense layouts where side routing improves organization and access.

Flat vs. Angled Ethernet Patch Panel: Which Should You Choose?

The better panel depends on the rack rather than a universal rule. Cable count, rack width, management hardware, technician access, and future expansion all matter. A simple network may benefit from the familiar flat layout. A crowded rack may work better with angled ports. These situations point toward different choices.

When to Choose a Flat Patch Panel

A flat panel makes sense when the rack has enough room for cables to extend forward before entering a management system. It also works well for smaller networks. Below are situations where its simple layout can make installation and maintenance easier without adding unnecessary routing requirements.

• Choose flat panels for smaller networks with moderate connection counts and manageable cable bundles.
• Select this design when front-facing ports provide easy access for regular testing and maintenance.
• Use flat panels where existing horizontal cable managers already support the rack layout effectively.
• Pick this option when a familiar installation style matters for technicians working across several network cabinets.
• Consider flat panels when future expansion remains limited and available rack space comfortably supports cable growth.

When to Choose an Angled Patch Panel

An angled panel becomes useful as cable density rises and front rack space becomes harder to manage. Its side-directed ports can create cleaner paths into vertical managers. These situations often make the angled design especially practical for larger installations that require frequent changes or future connections. Below are the situations where angled patch panels might be suitable:

• Choose angled panels for high-density racks carrying many network connections within limited front cable space.
• Select this design when vertical cable managers provide convenient routing beside the patch panel.
• Use angled panels where reducing forward cable congestion improves rack organization and service access.
• Pick this option for installations expecting frequent moves, adds, and changes across many connected ports.
• Consider angled panels when cleaner side routing helps maintain suitable cable paths throughout crowded racks.

Wrapping Up With the Right Patch Panel Choice

Flat and angled patch panels both provide reliable network organization, but their layouts suit different rack conditions. Flat panels work well for simple installations with manageable cable counts. Angled panels offer cleaner routing for dense racks.

TS Cables provides quality networking products to support organized, dependable installations built around your project requirements.

FAQs

Are angled patch panels better for high-density racks?

Angled panels often suit high-density racks because their ports direct cables toward side managers, reducing congestion across the rack front.

Do flat patch panels require cable managers?

Flat panels do not always require separate managers, but cable management hardware helps keep connected cables organized and protects suitable routing paths.

Do angled patch panels save rack space?

Angled panels can reduce cable space needed directly in front of the rack because connected cables move toward vertical managers sooner.

Are flat patch panels easier to install?

Flat panels generally offer a familiar installation process, especially for technicians working with standard rack layouts and straightforward horizontal cable management.

Can either panel support Ethernet connections?

Both panel styles can support Ethernet connections when the panel matches the cable category, connector type, and performance requirements of the network.
