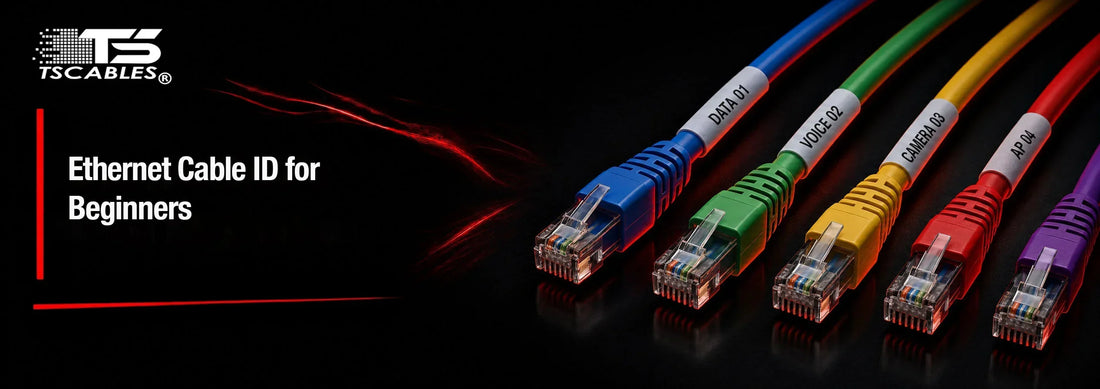

Ethernet Cable ID for Beginners

Usman Ghumman|September 5, 2026

Ethernet cables carry data between computers, switches, routers, access points, and other network devices. Their jackets also carry useful clues about how the cable is built and where it can be used.

A quick look at the printing can reveal its category and safety rating. It can also tell you about wire size and shielding. You can also learn about the standard and manufacturing date of the cable. That information turns a confusing cable into a readable label.

This Ethernet cable guide shows beginners how to read those markings without getting lost in technical terms. It also explains common LAN cable labels and color markings. You will also get an idea of the physical details that matter during installation, testing, replacement, and everyday network work.

Ethernet Cable IDs That Beginners Need to Know

The writing printed along an Ethernet jacket is called the cable legend or jacket marking. Each part gives you a useful clue about the cable. Let’s break down the common cable IDs beginners may see when checking network cable specifications or choosing a replacement cable.

Manufacturer

The manufacturer name is usually one of the easiest markings to spot. It identifies the company that made the cable. You may find it beside a product number or series name.

This detail matters because different manufacturers use different marking styles. A cable may also include a part number that points to its exact construction. Keeping that information makes it easier to find the correct Ethernet cord description or technical datasheet later.

A manufacturer name can also support quality checks. If a cable has unclear markings, searching its printed product code can reveal its Ethernet cable specs, approved uses, and testing information.

UL Jacket Fire Rating

Fire ratings show how a cable behaves when exposed to flame under a specific safety test. They are especially important for permanent installations inside:

Walls
Ceilings
Riser spaces
Other building areas

The rating printed on the jacket tells installers where the cable may be permitted. Common markings include CMR for communications riser cable and CMP for communications plenum cable. Always match the cable rating with local code and the installation location.

The following markings are common examples that beginners may find on Ethernet jackets:

CMR: Communications riser cable for suitable vertical pathway installations.
CMP: Communications plenum cable for approved air-handling spaces.
CM: General-purpose communications cable with broader restrictions.
LSZH: Low-smoke, zero-halogen construction used in some specialized environments.

A cable's fire rating is separate from its data category. A Cat6 cable still needs the correct jacket rating for its installation area. Never choose a cable from its Cat number alone.

Maximum Operating Temperature in Celsius

The maximum operating temperature tells you how much heat the cable is rated to handle during normal operation. You may see markings such as 60°C or 90°C on certain products.

Temperature matters because cable performance can change as heat rises. The surrounding space also matters. Cable installed near hot equipment may face higher temperatures than cable placed inside a cool office.

A common Ethernet wire standard or product specification may provide temperature information that does not appear directly on the jacket. Check the manufacturer's data sheet when the printed label does not provide enough detail.

Number of Twisted Pairs in the Cable

Most familiar copper Ethernet cables contain four twisted pairs. Each pair contains two insulated copper conductors twisted around one another. Twisting reduces unwanted interference between the conductors. The pair count also gives you a quick clue about the cable's construction.

An Ethernet cable layout normally shows these pairs as four color groups. Standard Ethernet installations commonly use four pairs for modern Gigabit Ethernet connections. Older systems may use fewer pairs for certain speeds or applications.

The internal construction is different from the cable's outer appearance. A larger cable does not automatically contain more pairs. Checking the LAN cable configuration or product datasheet gives you the exact construction.

Shielding Type (If Any)

Shielding protects the conductors from certain forms of electrical interference. Unshielded cables are commonly marked UTP, while shielded designs use additional foil, braid, or both.

The jacket marking may show the shielding structure through abbreviations. Those letters can look confusing at first, but they describe where shielding is placed. Common markings include:

U/UTP: No overall shield and no individual pair shields.
F/UTP: Overall foil shield around the twisted pairs.
U/FTP: No overall shield, with foil around individual pairs.
S/FTP: Overall braid shield with foil around individual pairs.

The right shielding choice depends on the installation environment. Strong electrical equipment and dense cable pathways may require additional protection from interference. The LAN wire types available for a project should therefore be checked against the environment before installation.

Wire Gauge

Wire gauge describes the thickness of the copper conductor. Ethernet cables commonly use AWG measurements, with numbers such as:

The Ethernet wire gauge affects physical properties such as conductor size, flexibility, and resistance. A lower AWG number represents a thicker conductor. Gauge is different from the cable's category. A Cat6 cable can be available in different conductor sizes depending on its construction.

The conductor size may also affect installation choices. For example, slim patch cables often use smaller conductors than full-size horizontal cable. Always check the LAN cable specification before assuming two cables with the same category have the same construction.

Certifications

Certifications and listing marks show that a cable has been evaluated against specific requirements. The jacket may include marks from organizations such as UL or ETL.

These markings matter because a cable may be required to meet certain safety or installation rules. A certification mark should be tied to an identifiable manufacturer and product.

A good LAN cable label may include several pieces of information in one continuous line. Some markings identify electrical or fire safety testing, while others identify environmental requirements.

Do not treat every logo as proof that a cable meets every network requirement. Check the product documentation for the exact certification and scope.

Category Cable Type

The category tells you the performance class of the twisted-pair cable. You may see Cat5e, Cat6, Cat6A, or another category printed on the jacket. The category is one of the most useful pieces of information for identifying types of Ethernet cable.

It gives you a starting point for checking bandwidth, supported applications, and installation requirements. Common examples include:

Cat5e: Commonly used for Gigabit Ethernet connections.
Cat6: Provides higher performance specifications than Cat5e.
Cat6A: Supports higher-frequency applications and is widely used for 10 Gigabit Ethernet.
Cat8: Built for high-frequency data center applications under specific installation conditions.

Older cables may still carry Cat5 markings. The Cat5 color code inside that cable does not identify its category. The category is determined by the cable's construction and performance requirements.

Cable Bandwidth in MHz

The bandwidth marking tells you the frequency range associated with the cable's performance rating. You may see values such as:

100 MHz
250 MHz
500 MHz

An example of this is the Cat5e cable that is commonly rated to 100 MHz. Cat6 is commonly rated to 250 MHz and Cat6A to 500 MHz. Bandwidth is one part of the overall network cable specifications.

It should not be treated as the same thing as Internet speed. Your actual network performance also depends on connected hardware, cable length, installation quality, and other factors. A cable's frequency rating gives you useful information before you even connect it to a network tester.

ANSI/TIA Standard

ANSI/TIA standards provide structured requirements for telecommunications cabling. A cable jacket may reference a standard such as ANSI/TIA-568.2. You may also see references connected to older revisions. The printed standard provides a clue about the requirements used for the cable's construction.

The LAN wiring color code and termination practices are closely tied to the TIA cabling framework. Installers also use these standards when checking pair assignments and performance requirements.

For beginners, the key point is simple: the standard marking identifies the technical framework associated with the cable. It is useful when checking product documents or planning a structured cabling installation.

RoHS

RoHS stands for Restriction of Hazardous Substances. A RoHS marking indicates that the product is made to meet applicable restrictions on certain hazardous substances. This marking is an environmental compliance detail rather than an Ethernet performance rating.

It does not tell you the cable category, bandwidth, or maximum network speed. A jacket may place the RoHS marking beside its category, manufacturer, and other details. This creates a compact information line that can look overwhelming at first.

When checking Ethernet cabling, separate environmental markings from network performance markings. Each serves a different purpose and answers a different installation question.

XXXXF

The XXXX in a jacket marking generally represents the current footage or length marker printed along the cable. For example, a marking may show a changing number as the cable is pulled from a reel.

This marking is useful during installation because it gives the installer a quick reference for how much cable has been used. It can also make measuring a long cable run easier.

A reel jacket legend may use a format such as “XXXXFT.” The “FT” indicates feet, while the changing numbers identify the approximate position along the cable. Manufacturers may use different formats.

The marking is different from the listed Ethernet cord lengths sold as patch cables. A bulk cable reel may use sequential length markings, while a finished patch cord may simply have a fixed length printed on its packaging.

MM/YY

MM/YY represents the month and year of manufacture. For example, 08/26 indicates August 2026. The date marking gives installers and buyers useful information about when the cable was produced. It can be valuable during inventory checks, warranty discussions, and product traceability.

A date marking does not tell you the cable's age limit by itself. Storage conditions and manufacturer requirements also matter.

This marking is one reason a complete Ethernet cable configuration should be checked from the jacket and product documentation instead of relying on the plug alone. A finished cable can have useful information printed along its jacket even when the connector looks identical to another cable.

Build Reliable Networks with TS Cables

Reading Ethernet cable markings becomes easier once each code has a clear meaning. Check the category, fire rating, gauge, shielding, standard, and date before installation. These details also clarify Ethernet cable lengths, sizes of Ethernet cables, and other specifications.

Choose properly marked products from TS Cables for dependable network installations and easier cable identification.

FAQs

How do I identify an Ethernet cable?

Read the jacket markings for the category, manufacturer, fire rating, gauge, shielding, bandwidth, and standard. Those details provide the clearest identification.

What do Cat5e cable colors mean?

The Cat5e color order identifies each conductor within the twisted pairs. T568A and T568B define the two common termination arrangements.

Does Ethernet cable diameter matter?

The diameter of Ethernet cable affects installation space and handling. Check the product specifications because diameter varies by category, shielding, conductor size, and construction.

What are Ethernet cable lengths?

Common patch cable lengths range from short desktop leads to longer cords. Bulk cable is commonly supplied on reels with length markings.

What does an Ethernet cable port symbol look like?

The symbol for an Ethernet cable may appear beside an RJ45-style network port. Device manufacturers can use different icons, so the port label should also be checked.
