| Feature | Value | Description / Notes |
|---|---|---|
| Cable Standard | Cat7 / ISO/IEC 11801 | Exceeds TIA/EIA-568 Cat6A requirements |
| Max Data Speed | 10 Gbps | 10GBase-T Ethernet, stable and full-duplex |
| Bandwidth | 850 MHz | Supports high-frequency signal transmission |
| Max Distance | 100 Meters (328 ft) | Per channel at full 10G performance |
| Conductor | 23 AWG Solid Bare Copper | 100% pure copper; 4 pairs |
| Shielding | S/FTP | Individual foil per pair + overall braided shield |
| Jacket Rating | CMR (Riser) | slows vertical flame spread |
| Jacket Material | Low-Smoke PVC | Reduced smoke emission in case of fire |

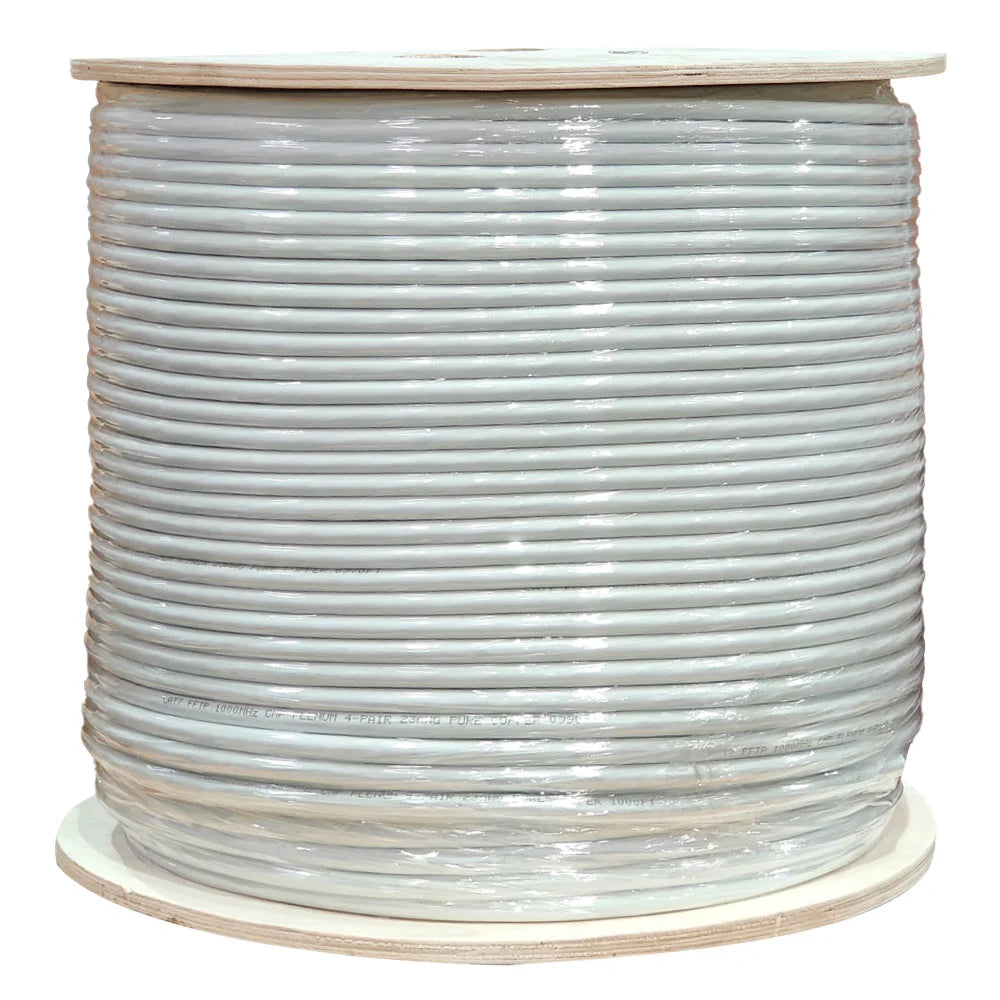

| Spool Length | 1,000 ft (304.8 m) | Reel in Box included; sequential footage markings |
| PoE Support | PoE++ (802.3bt) up to 90W | Superior heat dissipation via shielding |
| Operating Temperature | 0°C to +60°C | Installation range: -20°C to +75°C |
| Connector Compatibility | GG45 / TERA / RJ45 | Backward compatible with RJ45 patch panels |
| Colors Available | 9 Colors | Black, Blue, White, Red, Green, Yellow, Orange, Purple, Gray |
| Bend Radius | 4× OD (min.) | During installation; 8× OD during operation |
| Impedance | 100 Ω ± 15% | Characteristic impedance at 1–600 MHz |
| Attenuation | ≤ 20.8 dB/100m at 100 MHz | Per pair, meets Cat7 standard |
| NEXT (Crosstalk) | ≥ 65 dB at 100 MHz | Near-End Crosstalk, per pair |
