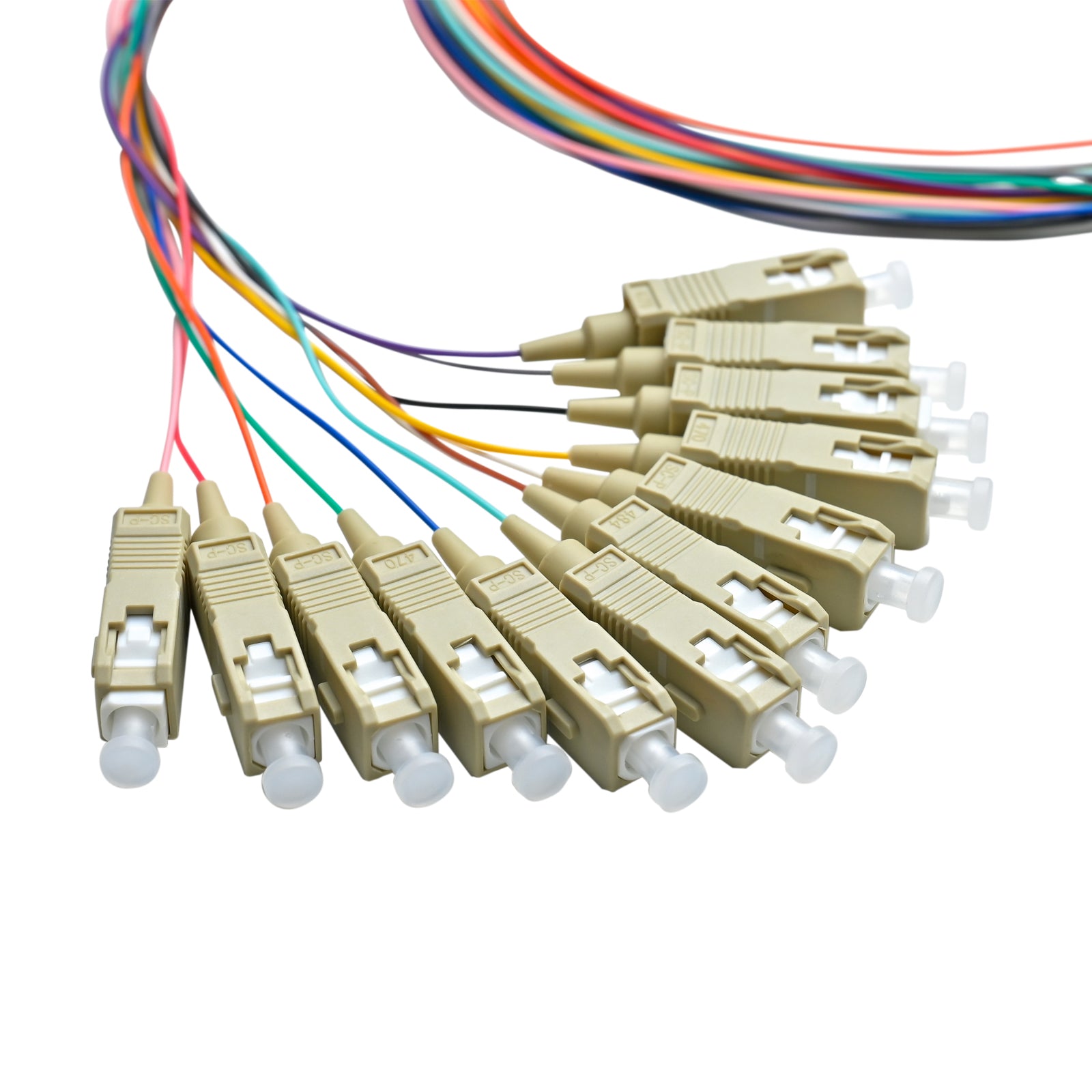

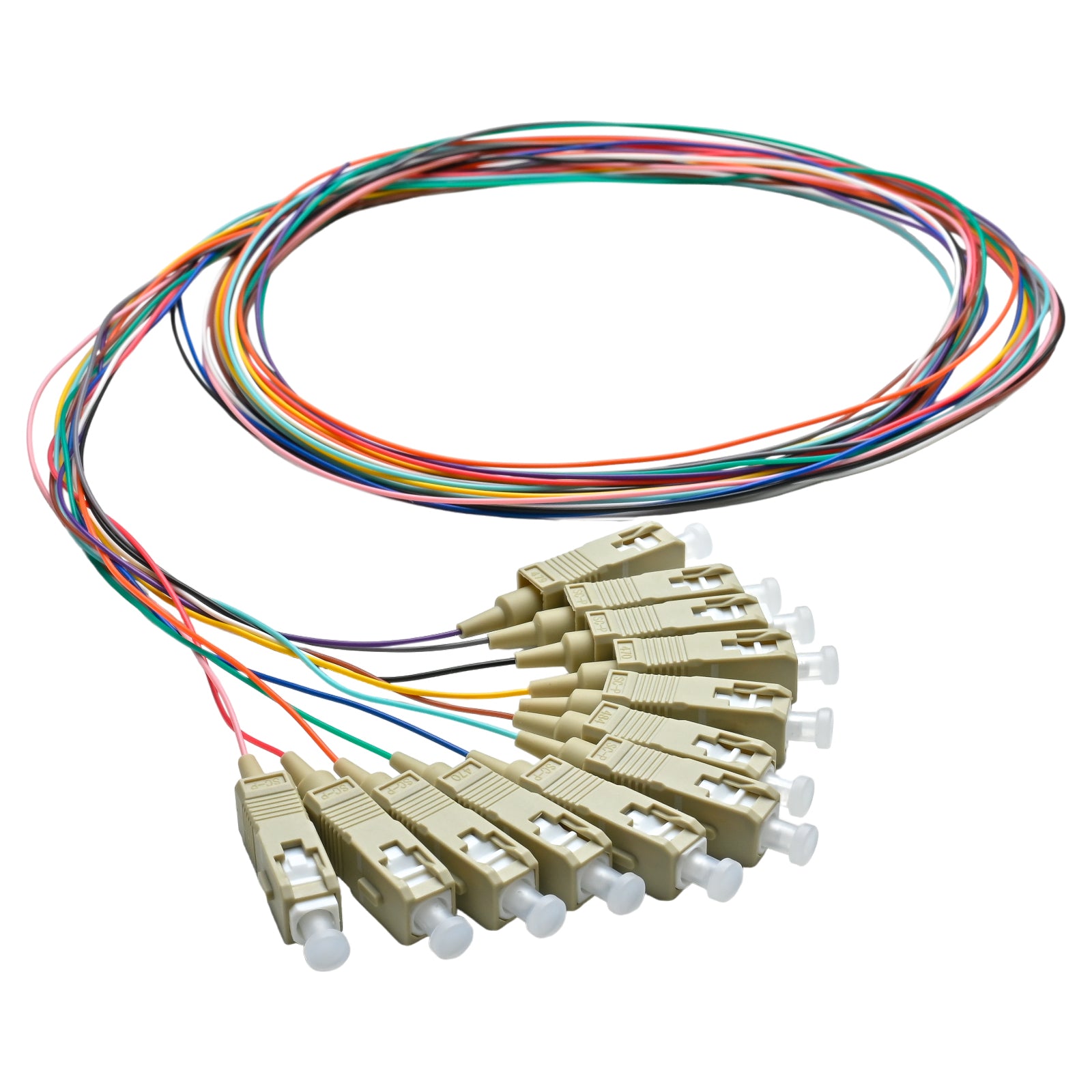

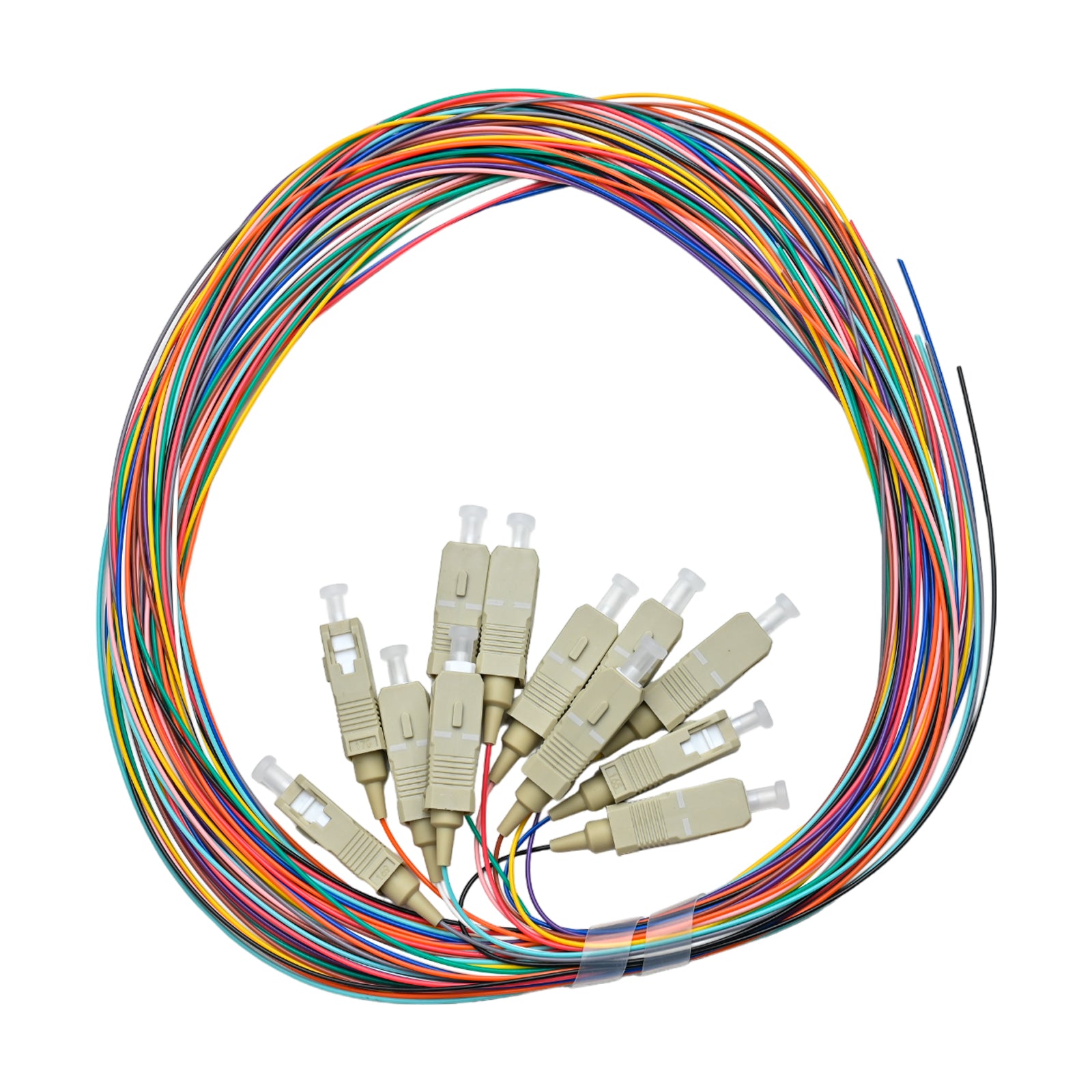

Terminating a full 12-strand OM4 cable is simple with this tight-buffered pigtail set. Twelve 3-meter fibers each carry a factory-polished SC/UPC connector, ready to snap into a 12-port SC adapter panel. The 0.9 mm tight buffer gives each fiber firm support for dense trays and frequent handling.
TIA-598 color coding runs the full twelve-color sequence, so every strand matches its cable fiber. The OM4 glass supports 10G through 100G short-reach Ethernet. The buffer meets the OFNR riser fire rating for indoor use. It suits data centers and campus cores built around 12-port SC panels.
A Full Panel in One Set
Many rack-mount fiber enclosures hold 12 SC adapters per panel. This set fills one panel completely. You get the whole TIA-598 sequence from blue through aqua. Strand 1 lands on port 1, and strand 12 lands on port 12, which keeps documentation clean.
OM4 Reach and Speed
OM4 multimode fiber delivers 4,700 MHz·km of effective modal bandwidth at 850 nm. That supports 10GBASE-SR up to 400 meters, 40GBASE-SR4 up to 150 meters, and 100GBASE-SR4 up to 100 meters. Few in-building links ever need more.
Tight Buffer vs. Semi-Tight
This version uses a fully tight 900 µm buffer bonded to the coated fiber. It's stiffer and more protective than semi-tight, which makes it a strong choice where fibers see repeated handling or route along sharp panel edges. The tradeoff is stripping in shorter increments of about 1.5 to 2 cm.
Connector Construction
Each SC connector uses a 2.5 mm ceramic ferrule in a square snap-in housing. It conforms to the TIA FOCIS-3 and IEC 61754-4 interface standards. The UPC polish keeps a flat, slightly domed contact for low insertion loss.
A Simple Loss Budget Check
Add up the expected losses before you install. Count each mated connector pair at up to 0.75 dB and each fusion splice at up to 0.3 dB, the TIA-568 maximums. Then add 3.5 dB/km of fiber at 850 nm. Compare the total to your transceiver's budget, and real-world numbers will usually come in lower.
• Connector: SC/UPC, 2.5 mm ceramic ferrule
• Fiber: OM4 50/125 µm, 850 nm laser-optimized
• Fiber count: 12, TIA-598 color-coded
• Buffer: 0.9 mm tight buffer
• Fire rating: OFNR
• Length: 3 m
Three meters per fiber gives plenty of slack to reach the splice tray and loop back to the adapter panel. Store excess fiber in the tray's coil guides. Keep bends above the minimum radius to avoid microbend loss.
