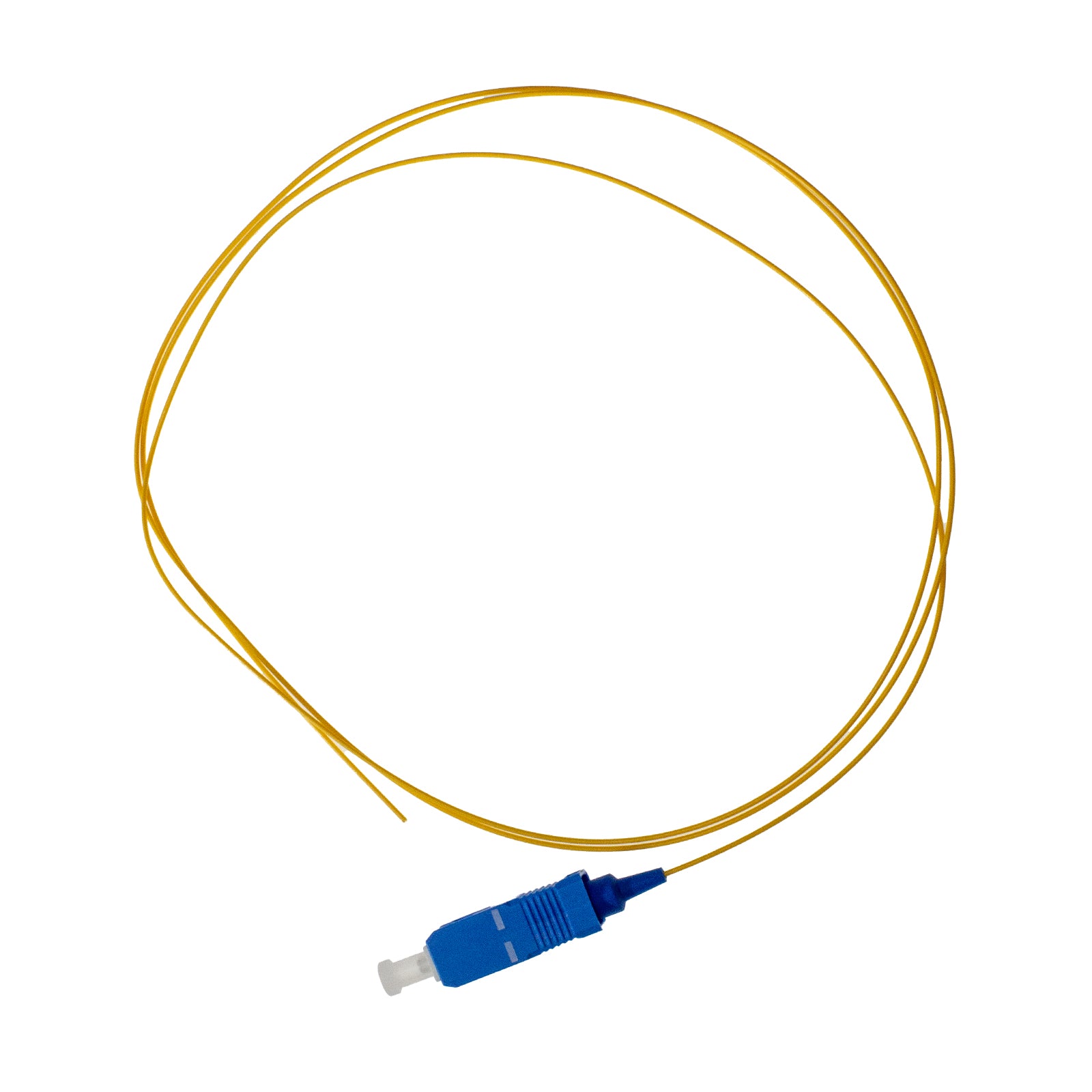

Pigtail SC/UPC SM G657A1 SX 0.9mm OFNR Yellow, tight buffer

Single Strand, Precise Termination

Some jobs call for just one fiber. Examples include repairing a broken connector, adding a single circuit, or terminating a spare strand. This simplex pigtail handles those tasks without opening a multi-fiber set. It's also a handy item to keep in a service van.

G.657.A1 Fiber Specs

G.657.A1 fiber meets the ITU-T bend-insensitive standard. One turn at a 10 mm radius adds no more than 0.75 dB at 1550 nm. Ten turns at 15 mm add no more than 0.25 dB. Its mode field diameter at 1310 nm matches G.652.D, which keeps splice loss low.

Tight Buffer Protection

The 900 µm buffer is bonded tightly to the 250 µm coated fiber. It gives the strand strength and kink resistance during routing. Strip it in short passes of about 1.5 to 2 cm with a precision stripper.

SC/UPC Connector

The SC connector features a 2.5 mm ceramic ferrule and a square push-pull housing. Single-mode UPC connectors are blue. That separates them from green APC connectors, which use an 8-degree angled polish. Never mate the two styles.

Picking the Right Length

The 1 m version fits compact customer boxes and small splice cases. The 3 m version suits rack-mount frames, where the fiber must travel from the adapter panel to a splice drawer and back. When in doubt, choose the longer pigtail, since it leaves room for a re-splice later.

• Connector: SC/UPC, 2.5 mm ceramic ferrule
• Fiber: single-mode 9/125 µm, ITU-T G.657.A1
• Fiber count: 1 (simplex)
• Buffer: 0.9 mm tight buffer, yellow
• Fire rating: OFNR
• Length options: 1 m and 3 m

Single-Mode Reach

OS2 single-mode fiber typically shows 0.4 dB/km or less at 1310 nm. With long-reach optics such as 10GBASE-LR, links can run up to 10 km. Short pigtails add almost nothing to the overall loss budget.
