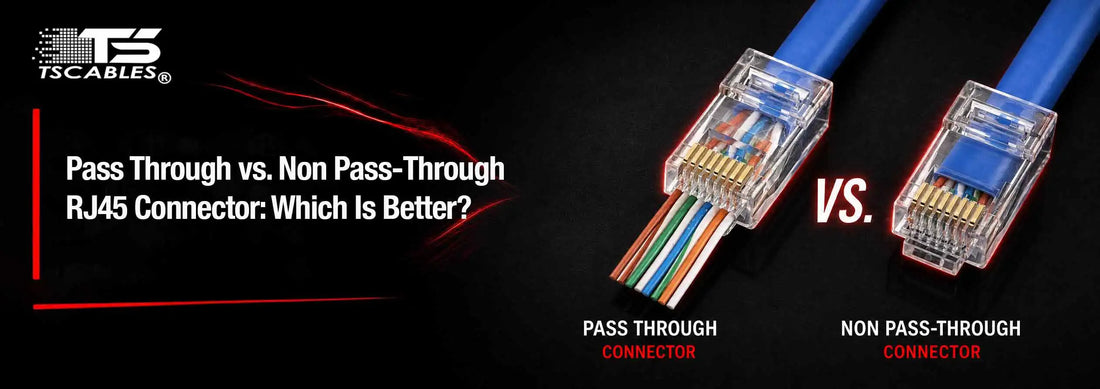

Pass-Through vs. Non-Pass-Through RJ45 Connector: Which Is Better?

Usman Ghumman|August 29, 2026

Choosing the right RJ45 connector can make cable termination much easier. Two common options are the pass-through and standard non-pass-through designs. An RJ45 pass-through connector lets the cable wires extend through the plug before crimping.

A standard connector keeps the wires inside the plug during termination. Installers often use pass-through RJ45 connectors for faster checking and easier wire placement. However, traditional connectors still have strong advantages for certain jobs.

Your cable type and installation method, along with connector quality and crimping tool, should guide the final choice. The right connector keeps terminations clean and secure. It also ensures that terminations are ready for reliable Ethernet connections.

Pass-Through RJ45 Connectors

Pass-through connectors change the way an Ethernet plug is terminated. The wires pass through the front instead of stopping the individual conductors inside the connector. This basic change affects installation speed and wire alignment. It also impacts testing and crimping. Let’s look at the main features, benefits, and drawbacks of this connector style.

Key Features of Pass-Through RJ45 Connectors

Pass-through connectors are built around simple wire visibility and easier alignment. Their design gives installers a clear view of the conductor order before the plug gets crimped. Several features make this style popular among technicians who terminate many Ethernet cables during one project.

Visible Wire Placement

The conductors extend through the front of the connector. This visibility makes it easier to check the color order before completing the termination.

Easier Wire Alignment

The wires can be arranged and pushed through the plug together. This process often makes conductor placement simpler during cable assembly.

Compatible Cable Options

Many pass-through plugs support common Ethernet cable categories. Installers should still check the connector rating and cable diameter before starting any termination work.

Specialized Crimping

A suitable RJ45 crimp pass-through tool is usually required. The tool cuts the wires and crimps the connector during the same operation.

Clear Termination Check

The visible conductors provide a quick way to check the wiring order. This feature can reduce mistakes before the connector reaches the crimping stage.

Benefits of Pass-Through RJ45 Connectors

The biggest advantage comes during termination. Installers can see the conductors while preparing the plug. That small change can save time across a large cabling project. The following benefits explain why many technicians choose this connector design for field work.

Faster Cable Termination

Pass-through plugs can speed up termination. This is because installers can arrange the wires while viewing their position through the connector body.

Easier Error Detection

The exposed wire ends make incorrect conductor order easier to spot. Installers can correct the sequence before completing the crimp.

Useful for Large Projects

Technicians terminating dozens or hundreds of cables may save valuable time. Faster preparation becomes especially useful during large network installations.

Simple Wire Management

The connector gives the conductors a defined path through the plug. This arrangement helps keep the wire sequence organized during termination.

Helpful for Beginners

New installers may find visible conductors easier to work with. The design provides a clear visual check before the connector gets permanently crimped.

Drawbacks of Pass-Through RJ45 Connectors

Pass-through connectors are useful. However, they are not perfect for every installation. They require compatible tools and suitable connector designs. The following points deserve attention before selecting them for a network project.

Special Crimp Tool Required

Many pass-through plugs require a dedicated crimping tool. A standard RJ45 crimper may not cut and finish the connector correctly.

Connector Compatibility Matters

Not every pass-through plug supports every cable. There are various things that should match the connector specifications. This includes:

Cable category
Conductor size
Jacket diameter
Conductor construction

Exposed Ends Need Cutting

The wires extend outside the connector before crimping. The crimping tool must trim those ends cleanly to produce a finished connection.

Quality Can Vary

Low-quality plugs may produce inconsistent results. Reliable connectors from established manufacturers usually provide better fit and termination performance.

More Care During Tool Selection

Buying the plug alone is not enough. The crimper should match the connector design so the contacts and wire ends finish correctly.

Non-Pass-Through RJ45 Connectors

Traditional RJ45 connectors keep the conductors inside the plug. The wires are trimmed to the required length before they enter the connector body. This design has been used across Ethernet installations for many years. Its familiar process makes it a practical choice for technicians with standard termination tools and established cabling procedures.

Key Features of Non-Pass-Through RJ45 Connectors

Non-pass-through connectors use a more traditional termination method. The conductors stop inside the plug rather than extending through the front. This approach requires careful wire preparation, but many installers already know the process. Several features make standard RJ45 connectors useful across different network projects.

Traditional Connector Design

The wires remain inside the connector after insertion. This creates the familiar appearance found on many standard Ethernet cable assemblies.

Standard Crimping Process

Most traditional RJ45 plugs use common crimping tools. Installers can often work with equipment they already have for regular Ethernet terminations.

Internal Wire Ends

The conductor ends stay inside the plug. This creates a finished appearance without visible wires extending from the connector face.

Wide Availability

Non-pass-through plugs are widely available in different categories and configurations. Installers can select products based on cable type and network requirements.

Familiar Installation Method

Experienced technicians often know the standard termination process well. This familiarity can make routine installations predictable and easy to manage.

Benefits of Non-Pass-Through RJ45 Connectors

Traditional connectors remain popular because they work with familiar tools and installation methods. They also suit many standard Ethernet projects. The benefits below explain why a non-pass-through plug may still be the sensible option for your cable assembly.

Works With Standard Tools

Many standard RJ45 plugs can be terminated using common crimping tools. This reduces the need for specialized equipment.

Clean Finished Appearance

The conductor ends remain inside the connector. The finished plug therefore has a neat appearance without excess wire extending from the front.

Broad Product Selection

Installers can find standard plugs for many cable categories, conductor types, and jacket sizes. This makes product selection easier for varied installations.

Proven Termination Method

Traditional RJ45 termination has been used for years. Many technicians already have the skills needed to prepare and crimp these connectors.

Useful for Routine Repairs

A standard connector works well for basic cable repairs and replacements. Technicians can often complete the job using tools already available.

Drawbacks of Non-Pass-Through RJ45 Connectors

The traditional design requires more attention during wire preparation. The conductors must be cut to the right length before insertion. Small errors can affect the final termination. These limitations become more noticeable for installers working through large batches of cables.

Less Visual Checking

The conductors cannot extend through the plug. Installers therefore have less visibility when checking the final wire position before crimping.

Careful Preparation Required

The wire ends must be trimmed correctly. Poor preparation can cause uneven conductor placement and create problems during crimping.

More Room for Wiring Errors

Incorrect wire order may remain hidden inside the connector. A careful installer should verify the wiring standard before completing each plug.

Slower Batch Termination

Large projects may require more time because every conductor must be measured and trimmed before entering the connector.

Greater Dependence on Skill

Traditional termination rewards careful technique. New installers may require practice before producing consistent connections across many cables.

Pass-Through vs. Non-Pass-Through RJ45 Connector: Which One Should You Choose?

There is no single connector style that suits every Ethernet cable project. The best choice depends on various factors. This includes installer and cable construction. You also need to consider available tools and project size to determine the required termination process. Let's go over the points that make the decision easier by focusing on common installation situations.

Choose Pass-Through for Faster Work

A pass-through RJ45 design suits projects where many cables must be terminated quickly. The visible conductors make wire order easier to inspect before crimping. This feature can save time when technicians prepare large cable batches.

A pass-through cable assembly can also be easier to troubleshoot during termination because the conductor sequence remains visible. Installers should use the correct crimping tool to cut and finish the connector properly.

Choose Non-Pass-Through for Traditional Installations

A non-pass-through connector makes sense for technicians who already use standard crimpers and traditional termination methods. It provides a familiar workflow without requiring a specialized pass-through tool.

This option can also work well for small repair jobs. A technician may already have standard plugs and crimping equipment available. There is little reason to change the process when the existing method works reliably.

Check Your Cable Construction

Cable construction should influence connector selection. Solid and stranded Ethernet cables can require different connector designs. The cable jacket diameter also matters because the plug must hold the cable securely.

Installers should check the connector specifications before starting. A pass-through Ethernet connector may look suitable but still fail to match the cable's conductor size or jacket dimensions.

Match the Crimping Tool

The crimping tool should match the connector style. Pass-through plugs often require a tool that performs cutting and crimping in one operation. Standard plugs generally use a different crimping approach.

A mismatch between the plug and tool can produce poor terminations. Checking tool compatibility before installation prevents unnecessary rework.

Consider Project Volume

Project size can influence the practical choice. Large jobs often benefit from faster preparation and visual wire checks. Smaller jobs may favor traditional connectors because the installer may already have the required tools.

Technicians working with RJ45 pass-through connectors should also keep spare plugs and the correct crimper nearby. Good preparation keeps the installation moving when a connector gets damaged.

TS Cables is Here to Help You Out

Pass-through and non-pass-through RJ45 connectors both serve reliable Ethernet installations. Pass-through designs simplify wire alignment and visual checking, while traditional plugs work well with familiar tools. Choose the connector that matches your cable, tools, and project size.

TS Cables provides dependable networking products for clean, practical cable installations.

FAQs

Are pass-through RJ45 connectors easier to install?

Pass-through connectors often simplify wire alignment because conductors remain visible through the plug before crimping. They still require proper cable preparation and compatible tools.

Can standard RJ45 crimpers work with pass-through connectors?

Many pass-through connectors require a compatible crimper that trims the extended conductors during termination. Always check the tool and connector manufacturer's specifications first.

Are pass-through connectors suitable for Ethernet cables?

Yes, suitable pass-through connectors work with many Ethernet cable types. The connector category and conductor design must match the selected cable.

Do pass-through connectors provide better network performance?

The connector style itself does not guarantee better performance. Correct termination, cable compatibility, connector quality, and proper testing have greater influence on network results.

Are non-pass-through connectors still useful?

Traditional connectors remain useful for many Ethernet installations. They work well with standard tools and familiar termination methods when properly installed and tested.
