Speaker wire carries the audio signal from an amplifier or receiver to a speaker. Its size and other features affect how well that connection performs. A 14/2 speaker wire uses two 14-gauge conductors. This makes it a common choice for home audio and other speaker installations.
The “14” identifies the conductor gauge. The “2” indicates two conductors inside the cable. That simple label tells you quite a bit before the wire is installed. Choosing suitable wire also depends on distance and other factors. Continue reading to learn more about it.
What is Speaker Wire?
Speaker wire is an electrical cable. It carries an audio signal between an amplifier, receiver, or other audio source and a speaker. It normally contains two conductors that carry the positive and negative sides of the signal. Various factors determine how the cable performs, such as:
- Conductor material
- Gauge
- Insulation
- Overall construction
These details become more important as cable runs get longer or the system demands more power.

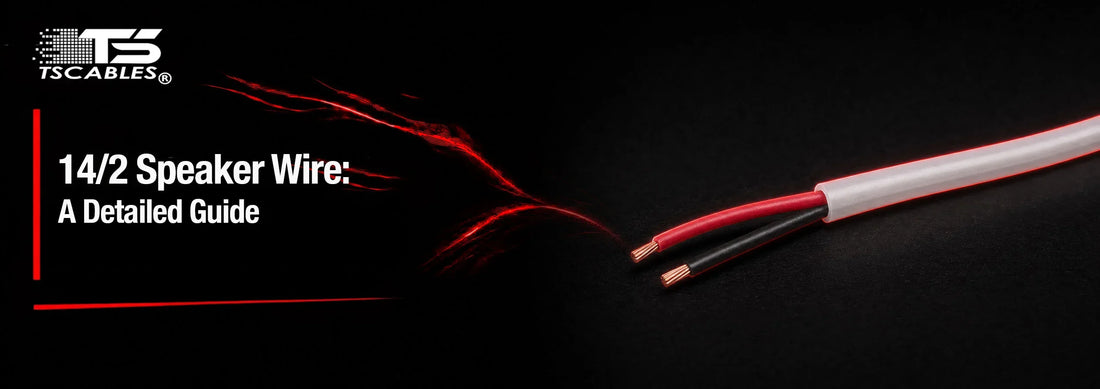

What is 14/2 Speaker Wire?
14/2 speaker wire contains two individual conductors made with 14 AWG wire. The “14” identifies the American Wire Gauge size, while “2” indicates the number of insulated conductors.
Each conductor carries one side of the speaker connection. One conductor normally connects to the positive terminal. The other connects to the negative terminal. Polarity should remain consistent from the amplifier to every speaker.
A 14-gauge conductor offers relatively low electrical resistance. This makes wire size suitable for many home audio installations. The right choice still depends on:
- Cable length
- Speaker impedance
- Amplifier output
- Installation conditions
Key Features of 14/2 Speaker Wire
A cable's basic label provides a starting point, but several physical details determine how useful it will be in an actual installation. Conductor size, materials, insulation, flexibility, and polarity markings all affect installation and everyday performance. These features give 14/2 speaker wire its practical characteristics for different audio setups.
14 AWG Conductors
The 14 AWG conductors are one of the defining features of this speaker wire. A lower AWG number represents a larger conductor. Therefore, 14 AWG wire has a relatively substantial copper cross-section for typical residential audio work.
A larger conductor generally has lower resistance than a thinner conductor of the same material and length. Lower resistance means less voltage is lost as the audio signal travels through the cable.
This becomes useful with longer speaker runs. A short connection may have very little cable resistance, while a long run can introduce more loss.
Two Separate Conductors
The “2” in 14/2 identifies two conductors inside the cable. These conductors form the complete electrical path between the amplifier and speaker.
One conductor connects to the positive terminal, and the other connects to the negative terminal. Keeping those connections consistent preserves speaker polarity throughout the system.
The two conductors are commonly placed side by side and joined by an outer jacket or web. Some speaker cables also include polarity markings that make terminal identification easier during installation.
Copper Conductor Construction
Many speaker cables use copper because copper conducts electricity effectively and is widely available for audio wiring. The actual conductor construction can vary between products.
Some cables use solid conductors, while others use stranded conductors. Stranded wire contains many smaller strands bundled together. This construction provides greater flexibility. It makes the cable easier to route around corners or through tight spaces.
The product specification should identify the conductor material. Copper-clad aluminum cables have different electrical properties from copper conductors. It should be evaluated accordingly.
Insulation and Jacket
Insulation separates the conductors and protects them from accidental contact. The outer jacket can also protect the cable from physical wear during installation.
Speaker wire may use PVC or another insulating material. The exact jacket material depends on the product and its intended application.
For concealed installations, the cable must have the appropriate rating for the building space. A standard speaker cable should not automatically be placed inside walls or ceilings without checking its listing and local electrical requirements.
Polarity Identification
Speaker cable often includes a visible way to identify one conductor. Markings may include a stripe, ridge, printed text, different insulation texture, or another identifying feature.
This small detail saves time during installation. The marked conductor can be assigned consistently to the positive terminal. The unmarked conductor connects to the negative terminal.
Correct polarity matters when multiple speakers operate together. Reversing one speaker's connections can affect how the speakers work together and may reduce bass response in some systems.
Pros of 14/2 Speaker Wire
A 14/2 cable offers several practical benefits for everyday speaker installations. Its conductor size provides a useful balance between electrical performance and installation convenience. The advantages below focus on the situations where this wire size can make sense, from residential audio systems to longer cable runs.
Good Balance for Home Audio
14 AWG wire is a practical size for many home audio systems. It provides relatively low resistance without becoming excessively large or difficult to route.
This makes it useful for stereo systems, home theater speakers, and distributed audio. The final choice should still account for speaker impedance, amplifier output, and cable distance.
For many residential projects, 14/2 wire provides enough conductor capacity without requiring the bulk of much larger cable.
Suitable for Longer Runs
Cable resistance becomes more noticeable as the distance increases. A longer run has more conductor material in the signal path, which increases total resistance.
The relatively large conductors in 14/2 wire make it useful for longer speaker connections where a thinner cable could introduce greater resistance.
The exact suitable distance depends on the speaker load and system requirements. There is no single maximum distance that applies to every audio setup.
Easy Polarity Management
Two-conductor construction keeps speaker wiring straightforward. The installer has one conductor for each side of the electrical connection.
Visible markings also make it easier to maintain consistent polarity. This matters in systems with multiple speakers because consistent connections keep their movement synchronized.
A simple marking system can prevent mistakes that would otherwise require troubleshooting after the speakers are installed.
Flexible Installation Options
Stranded 14 AWG speaker wire can be flexible enough for common residential routing. It can pass behind equipment, along walls, through furniture openings, and through other accessible pathways.
Flexibility becomes especially useful around speaker terminals and amplifier connections. It also reduces the struggle involved in routing cable through spaces with several bends.
The cable construction should still match the installation environment. Flexibility should never replace proper cable ratings.
Widely Available Cable Size
14 AWG is a common wire size for speaker applications. That makes it relatively easy to source in different lengths and constructions.
Installers can find versions intended for exposed use, concealed installations, commercial audio, and other applications. The available choices make it easier to select insulation and jacket properties that fit the project.
Availability also makes replacement and future expansion simpler because the same general wire size can often be sourced again.
Cons of 14/2 Speaker Wire
No cable size works perfectly for every audio installation. A 14/2 cable has limitations related to various factors. Recognizing these drawbacks before installation prevents problems later. It also makes it easier to select a cable that suits the actual system.
Thicker Than Smaller Wire
14 AWG wire is thicker than 16, 18, or 20 AWG speaker wire. That added conductor size can make routing more difficult in tight spaces.
The difference may seem small on a short, exposed run. However, larger cable can become harder to manage when several speaker connections follow the same pathway.
Installers should leave enough room for clean bends and secure connections. Forcing thick cable into a small terminal can also create a poor connection.
Higher Cost Than Thin Wire
Larger conductors generally require more conductive material. As a result, 14/2 speaker wire may cost more than thinner speaker cable.
The price difference becomes more noticeable across large installations. A multi-room system may require hundreds of feet of cable, so conductor size can affect the project budget.
Cost should be considered alongside electrical requirements. Choosing a thinner cable simply to save money may increase resistance beyond what the system can reasonably tolerate.
May Be More Than Necessary
Some short speaker connections do not require 14 AWG conductors. A small system with short cable runs may operate properly with a thinner cable that meets the system's requirements.
Using 14/2 wire in such a setup is not automatically harmful. It may simply provide more conductor capacity than the installation requires.
The important point is to select the cable based on the complete system rather than assuming that a larger wire is always necessary.
Requires Proper Installation Rating
Speaker wire intended for general use may not be approved for every installation location. Concealed spaces can have specific cable requirements based on local codes and the type of building space. For example, some installations may require a cable listed for plenum or riser spaces.
A standard PVC-jacketed cable should not be assumed to meet those requirements. Always check the cable's markings and documentation before routing it through walls, ceilings, ducts, or other restricted spaces.
Large Cable Can Be Less Convenient
The thicker construction of 14/2 wire can make stripping and routing slightly more demanding. Small speaker terminals may also have limited space for larger conductors. Banana plugs or compatible terminal hardware can make connections easier when the equipment supports them.
Good preparation keeps the installation clean. The conductor should fit securely inside the terminal without loose strands or excessive exposed copper.
Applications of 14/2 Speaker Wire
The usefulness of 14/2 speaker wire extends across many audio installations. Its conductor size suits systems that require dependable signal connections over moderate or longer distances. The following applications show where this cable can fit naturally and where installers should pay close attention to the surrounding system requirements.
Home Theater Systems
Home theater installations often place speakers several feet away from the receiver or amplifier. Front, center, surround, and height speakers can all require separate cable runs. 14/2 speaker wire provides a practical option for these connections.
Its conductor size offers relatively low resistance for many residential distances. The cable should still match the speaker load and amplifier specifications. Concealed runs also require the appropriate in-wall cable rating.
Stereo Speaker Connections
Traditional stereo systems use separate left and right speaker connections. Each speaker needs a positive and negative conductor. A two-conductor 14 AWG cable fits this basic arrangement well. It provides a clear wiring path between the amplifier and speakers.
The cable can be used for bookshelf speakers, floor-standing speakers, and other passive speaker designs when its electrical and installation specifications match the system.
Multi-Room Audio
Multi-room audio systems can require long cable runs between a central amplifier and speakers located throughout a property. The larger conductors in 14/2 wire can be useful for these distances because cable resistance increases as the run becomes longer.
Installers should calculate the complete load when several speakers share an amplifier. Speaker impedance, amplifier limits, and wiring configuration all affect the final electrical load.
Commercial Audio Systems
Small commercial spaces may use speakers for announcements, background music, or other audio functions. These systems can involve longer cable pathways than a basic room setup.
14/2 speaker wire can suit compatible low-impedance speaker systems when the cable has the correct listing for the installation environment.
Commercial projects may have additional code requirements. The cable's fire rating, jacket type, conductor construction, and installation method should therefore be verified before work begins.
Outdoor and Distributed Audio
Outdoor entertainment areas can require speaker cable to travel between an amplifier and speakers positioned around a property. Pools and exterior seating areas may involve extended cable routes.
The main concern is selecting a cable specifically rated for the environment. Standard indoor speaker wire may not withstand:
- Moisture
- Sunlight
- Temperature changes
A suitable outdoor-rated cable should be selected where exposure is expected. The 14 AWG conductor size can remain useful. Keep in mind that the jacket and insulation must also fit the location.
Build Reliable Audio Connections with TS Cables
14/2 speaker wire offers a practical balance of conductor size and resistance with flexibility and installation convenience for many audio systems. Select the cable according to distance and speaker load. Keep the amplifier requirements and installation location in mind.
TS Cables provides dependable speaker wiring options for clean and reliable audio connections in residential and commercial projects.
FAQs
What does 14/2 mean on speaker wire?
The 14 identifies the American Wire Gauge size. The 2 indicates that the cable contains two separate conductors.
Is 14/2 speaker wire good for home theater?
14/2 wire works well for many home theater systems. This is especially true in longer runs where its larger conductors can reduce cable resistance.
How far can 14/2 speaker wire run?
There is no single maximum distance. Suitable length depends on:
- Speaker impedance
- Amplifier power
- Cable resistance
- Acceptable signal loss
Can 14/2 speaker wire be used outdoors?
Outdoor use requires cable with suitable weather resistance. Standard indoor speaker wire should not be exposed to moisture or outdoor conditions.
Is 14/2 speaker wire suitable for in-wall installation?
Only cable carrying the appropriate in-wall rating should be installed inside walls. Check the product markings and local electrical requirements before installation.
