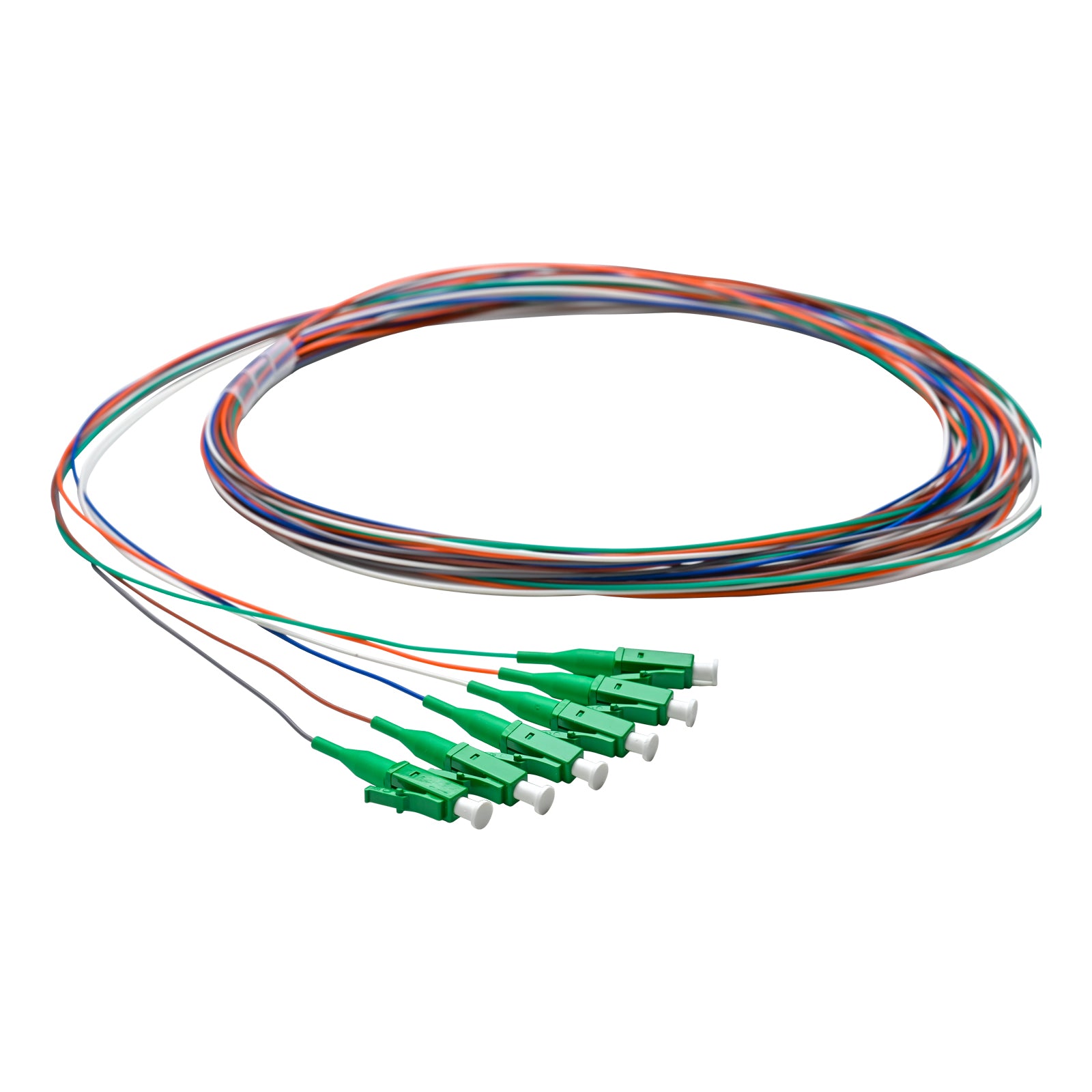

This six-fiber LC/APC pigtail set gives FTTH and MDU installers fast, low-reflection terminations on compact angled-polish hardware. Each 3-meter fiber carries a factory-polished LC/APC connector with an 8-degree end face. The semi-tight 0.9 mm buffer strips long sections in one cut, which speeds up every splice. Bend-insensitive G.657.A1 glass handles tight routing in small boxes. Six TIA-598 colors, blue through white, sit on an OFNR riser-rated buffer. It suits apartment buildings, small splitter cabinets, and LC/APC adapter plates. It speeds up floor-by-floor fiber rollouts in apartment and condo buildings.
Built for MDU Rollouts
Apartment and condo buildings often get a small fiber distribution box on each floor. A six-strand cable feeds the box, and a splitter serves the units. These pigtails terminate the riser fibers quickly, so crews can finish more floors in a day.
Connecting to SC/APC Equipment
Many ONTs and older splitters still use SC/APC ports. Where an LC/APC panel meets SC/APC gear, use an LC/APC-to-SC/APC patch cord. Both ends keep the angled polish, so reflections stay low across the whole link.
Semi-Tight Buffer Speed
The semi-tight buffer leaves an empty gap too small to see at 100x. One cut removes at least 10 cm. That means less handling of bare fiber and faster splicing in tight spaces.
APC Performance
The 8-degree polish typically delivers 60 dB return loss or better. That protects PON lasers and keeps RF video clean. The keyed LC/APC body keeps the angle aligned with each mate.
G.657.A1 Bend Tolerance
G.657.A1 glass is rated for bends down to 10 mm. Small MDU boxes rarely leave room for wide loops, so this tolerance matters.
Tight Spaces, Neat Coils
Floor boxes in older buildings are often shallow. Coil spare fiber in the box's guides at a gentle radius, and keep splice sleeves seated firmly. Tidy boxes are easier to reopen when new tenants move in.

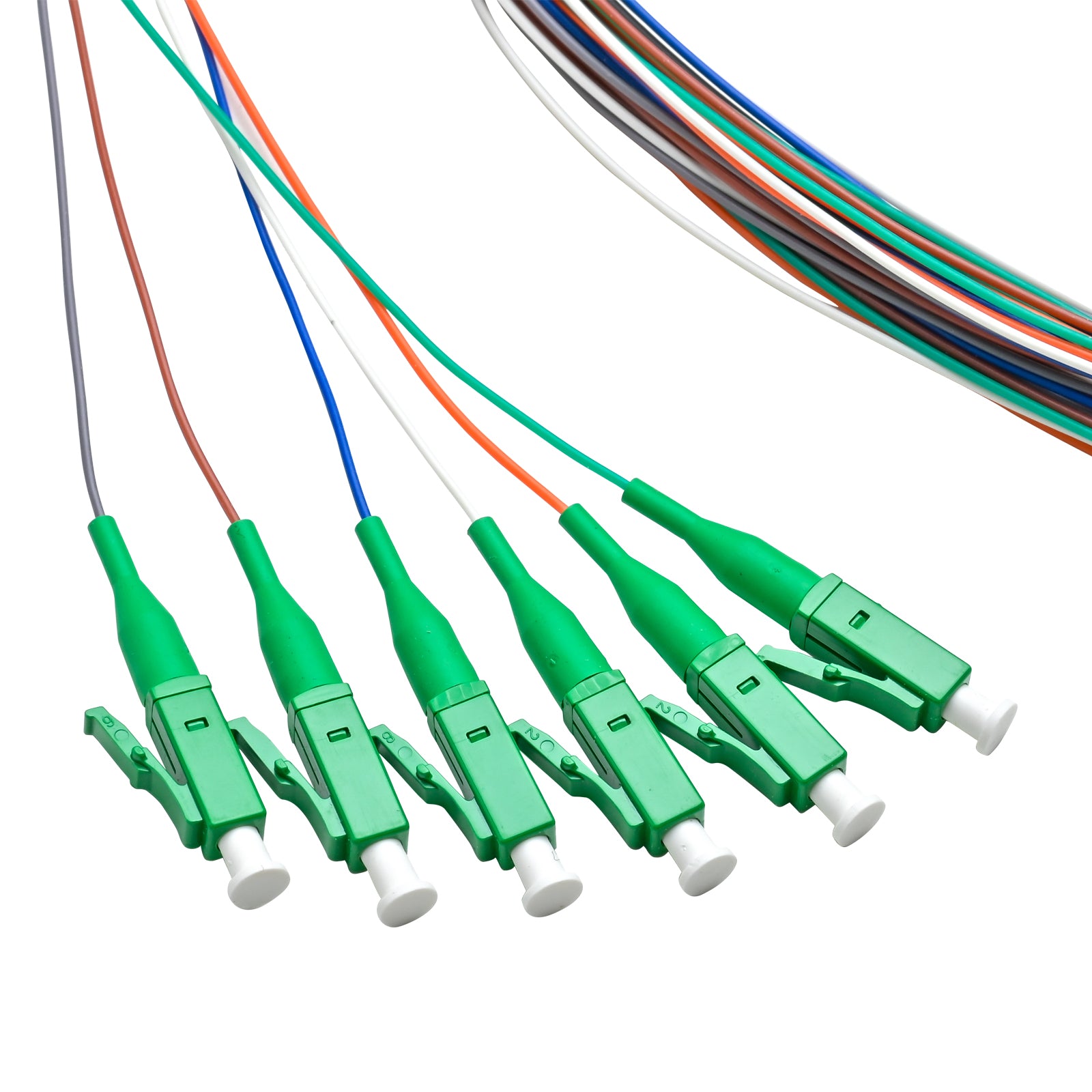

• Connector: LC/APC, 8-degree polish, green
• Fiber: single-mode 9/125 µm, G.657.A1
• Fiber count: 6, TIA-598 colors
• Buffer: 0.9 mm semi-tight
• Fire rating: OFNR
• Length: 3 m
Keep Records Per Floor
Label each pigtail with the floor, box, and splitter port it serves. When a tenant calls about an outage, those records point the technician to the right fiber fast. They also help new crews pick up where the last team left off.
