Accurate Splice Measurements
An OTDR reading taken from one direction can make a single-mode splice look better or worse than it really is. Slight differences in mode field between fibers cause this, and it can even show "gainers." The fix is bidirectional testing. Measure each splice from both ends and average the two results to get the true loss.
High-Count Splicing Speed
Twelve fibers per cable means twelve strips. The semi-tight buffer removes 10 cm or more in one cut, with no gel and no powder. Across dozens of cables, that difference can save a full shift of labor.
Built for 100G Single-Mode
LC duplex pairs carry 10GBASE-LR, 100GBASE-LR4, and 100G CWDM4 optics. LR4 reaches 10 km, and CWDM4 reaches about 2 km. Terminating on LC keeps every pair ready for those transceivers.

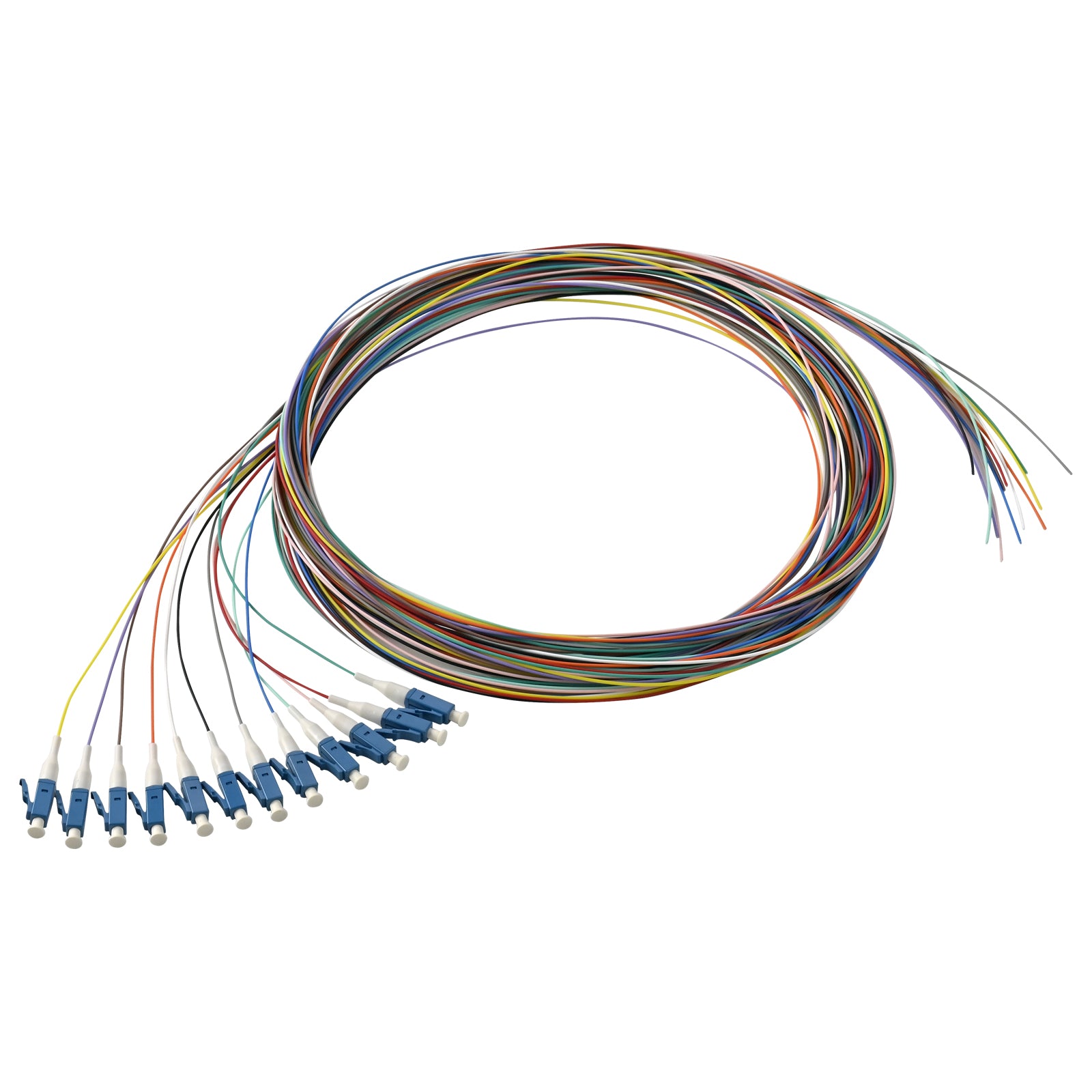

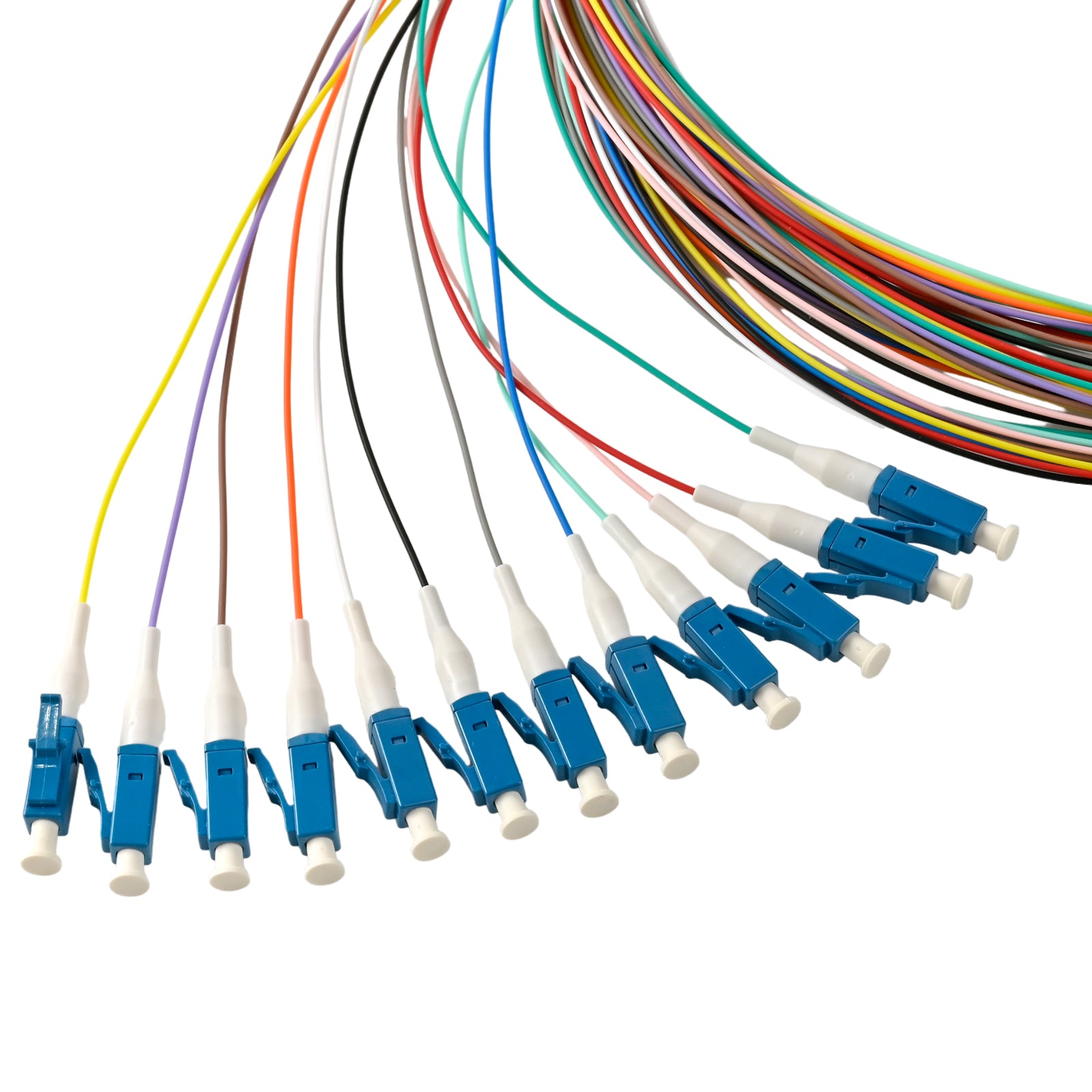

Twelve Strands, Six Pairs
The TIA-598 order is blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua. Neighboring colors form six duplex circuits. Keep the same pairing at both ends.
G.657.A1 Fiber
The fiber tolerates a 10 mm minimum bend radius. Splicing it to standard G.652.D cable needs no special settings. That gives you forgiving handling without changing your splice settings.
Where It Fits
This set suits meet-me rooms, data center interconnect panels, and campus core frames. It also works well in carrier rooms where single-mode circuits arrive on 12-strand cable and need to land on LC hardware quickly.
