Why Mode Field Diameter Matters
Single-mode light travels in a spot slightly wider than the 9 µm core, called the mode field. G.657.A1 fiber has a mode field diameter of about 8.6 to 9.5 µm at 1310 nm, the same range as G.652.D. When the two fibers' mode fields match, splice loss stays very low. A mismatch is one of the main causes of high readings on mixed fiber.
Semi-Tight Prep
The semi-tight buffer has a tiny, empty gap around the 250 µm coated fiber that you can't see even at 100x. One circular cut strips 10 cm or more. With six fibers per enclosure, that shortcut saves real time and limits contact with bare glass.
LC for Single-Mode Optics
LC is the standard port on single-mode SFP, SFP+, and SFP28 optics. Landing the backbone on LC lets you connect switches with plain LC jumpers. Each extra adapter adds loss, so a direct path keeps the budget healthier.
A Riser Closet Example

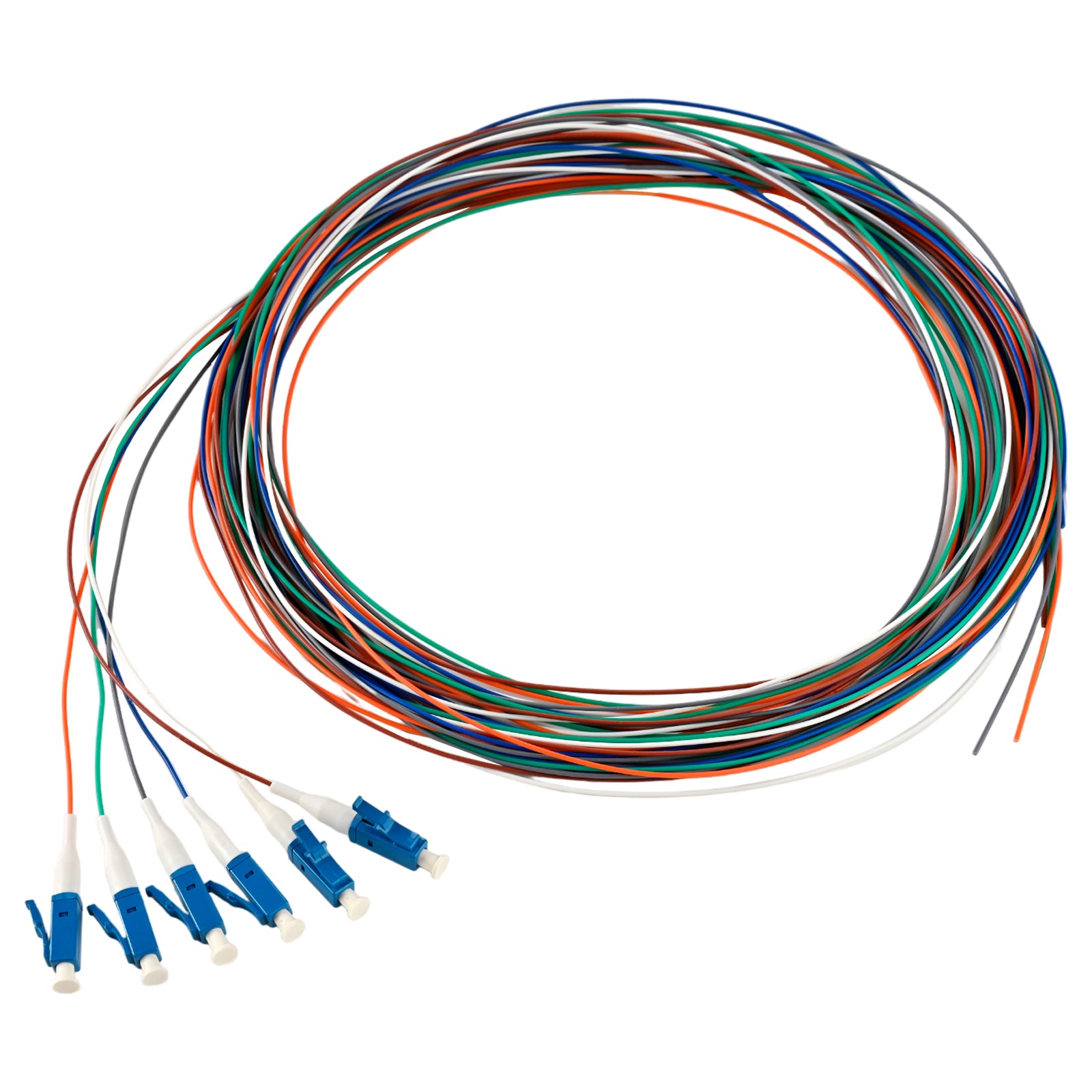

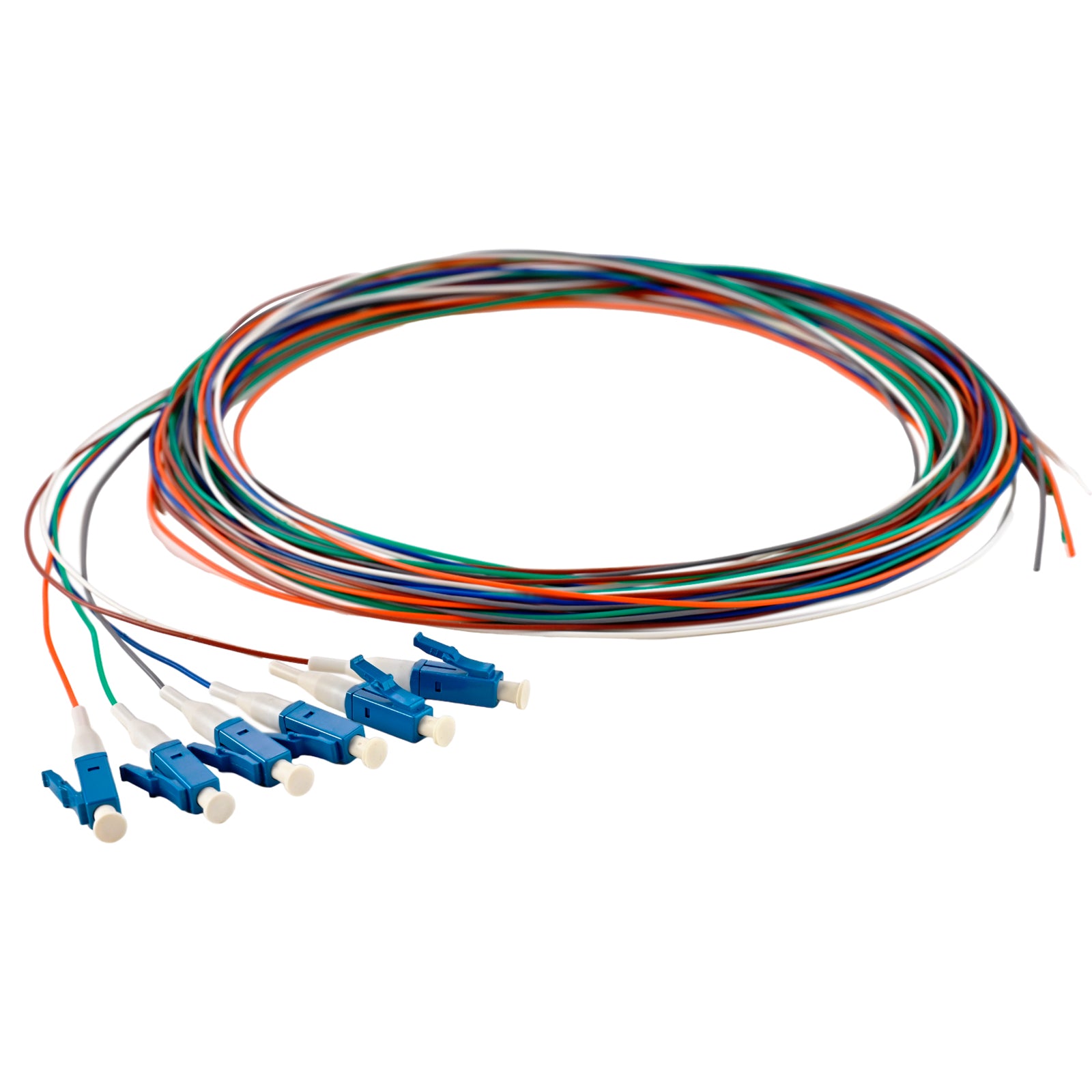

In a multi-floor building, a 6-strand OS2 riser cable often links the main equipment room to each floor's telecom closet. These pigtails terminate both ends quickly. Three duplex pairs give room for a primary uplink, a backup uplink, and a spare.
Bend Tolerance in Small Cassettes
G.657.A1 is rated for a 10 mm minimum bend radius. LC cassettes and shallow wall boxes rarely allow generous curves. This fiber keeps the added loss small when routing gets tight.
Testing the Riser Link
After splicing, test each strand at 1310 and 1550 nm with a power meter. A large difference between the two wavelengths often points to a tight bend somewhere along the riser.
