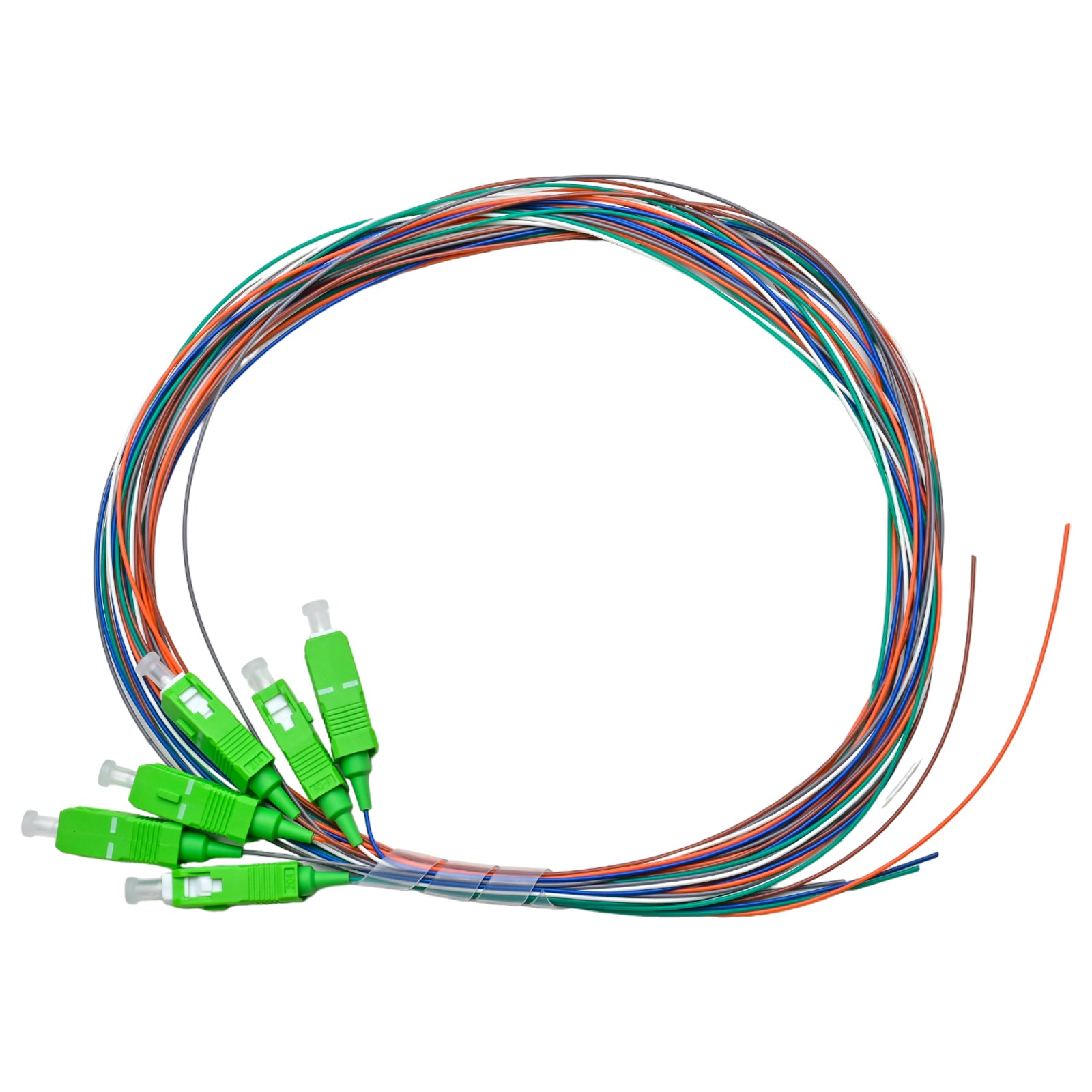

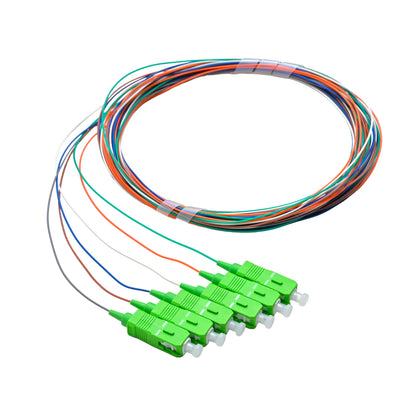

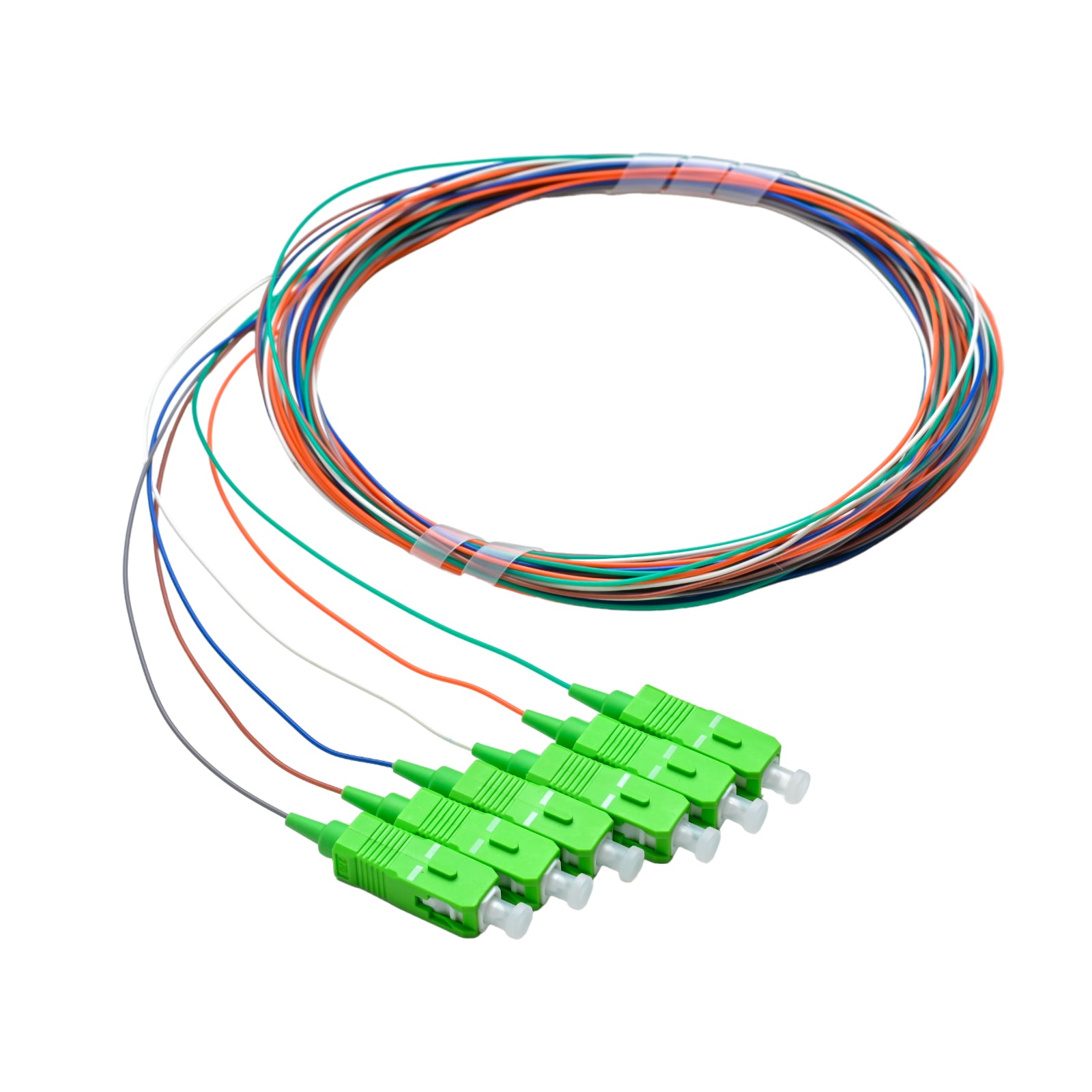

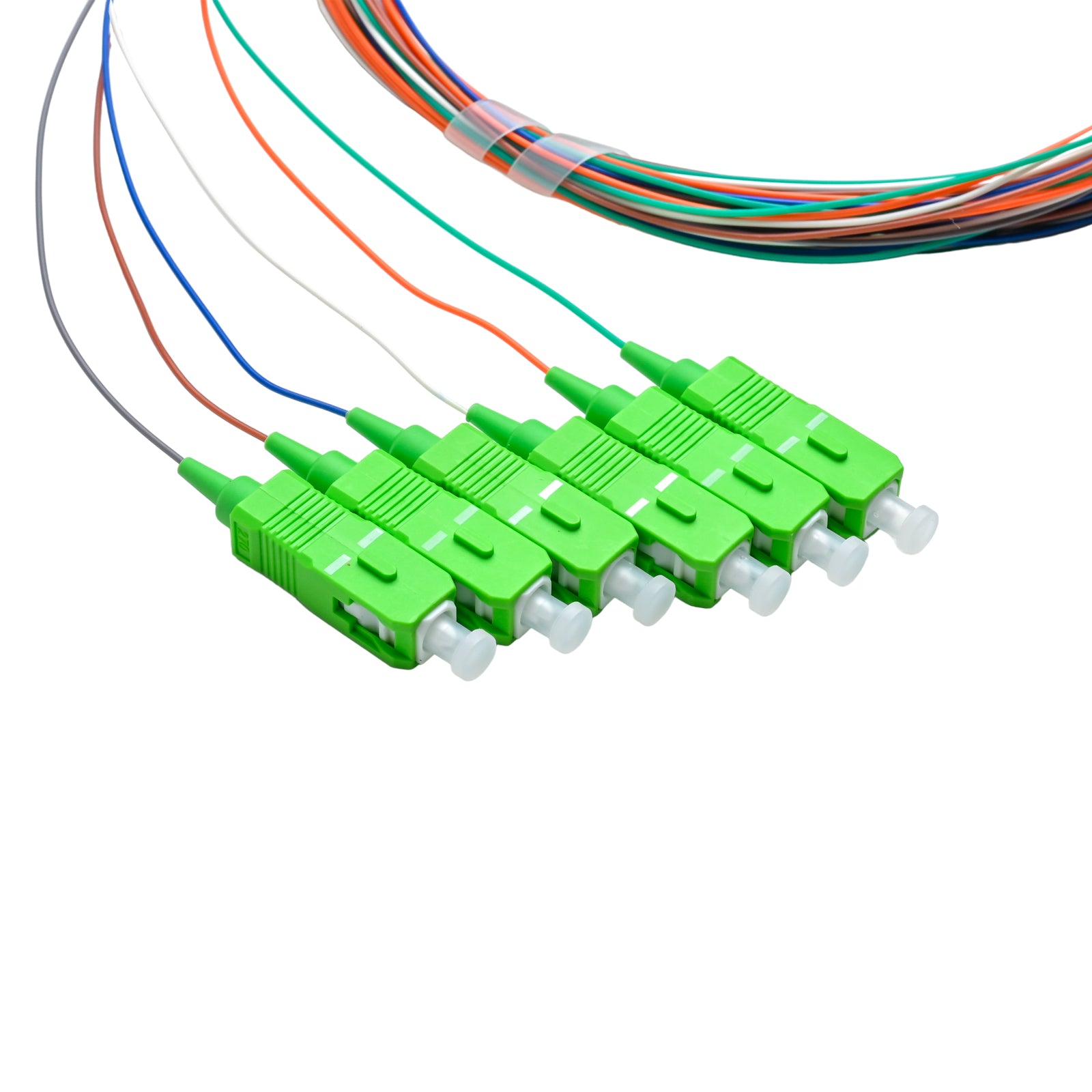

This six-fiber SC/APC pigtail set terminates 6-strand single-mode cable for PON, FTTH, and RF video networks. Each 3-meter fiber ends in a factory-polished connector with an 8-degree angled end face, which keeps back reflection very low.
Bend-insensitive G.657.A1 glass tolerates tight splitter trays and compact boxes. The 0.9 mm tight buffer adds firm protection. The six strands follow the TIA-598 color code from blue to white, and the buffer meets the OFNR riser fire rating. It fits naturally into splitter hubs and multi-dwelling distribution boxes. Each strand is ready for a 6-port APC adapter plate.
Six APC Terminations for PON
Fiber distribution hubs, small multi-dwelling unit boxes, and splitter modules often handle six fibers at a time. This set terminates them all with matching SC/APC connectors. It's a clean fit for 6-port APC adapter plates.
Return Loss Performance
The 8-degree angle directs reflected light into the cladding. APC connectors typically reach return loss of 60 dB or better. That protects GPON and XGS-PON lasers and keeps RF video signals free of interference.
Bend-Insensitive Glass
G.657.A1 fiber meets ITU-T limits of 0.75 dB at 1550 nm for one turn at a 10 mm radius. Splitter cassettes and FTTH terminals often force tight curves, and this fiber keeps loss under control there. It splices cleanly to G.652.D feeder cable.
Tight Buffer Handling
The 900 µm buffer is bonded to the fiber for stiffness and crush resistance. Strip it in short passes with a precision stripper. The extra protection pays off in enclosures that get opened often for service changes.
Splitters and Loss Budgets
A 1:32 optical splitter typically adds around 17 dB of loss. GPON Class B+ optics allow a budget of roughly 13 to 28 dB from the OLT to the ONT. With that much used by the splitter, every connector and splice counts. Low-loss APC pigtails help keep the total inside the limit.
• Connector: SC/APC, 8-degree polish, green
• Fiber: single-mode 9/125 µm, G.657.A1
• Fiber count: 6, TIA-598 colors
• Buffer: 0.9 mm tight buffer
• Fire rating: OFNR
• Length: 3 m
Keep APC and UPC Apart
Only connect these pigtails to green APC adapters. A blue UPC port won't mate properly with an angled end face. The result is high loss and possible ferrule damage. Stock and label APC pigtails separately from UPC versions. That simple step stops most field mistakes before they happen.
