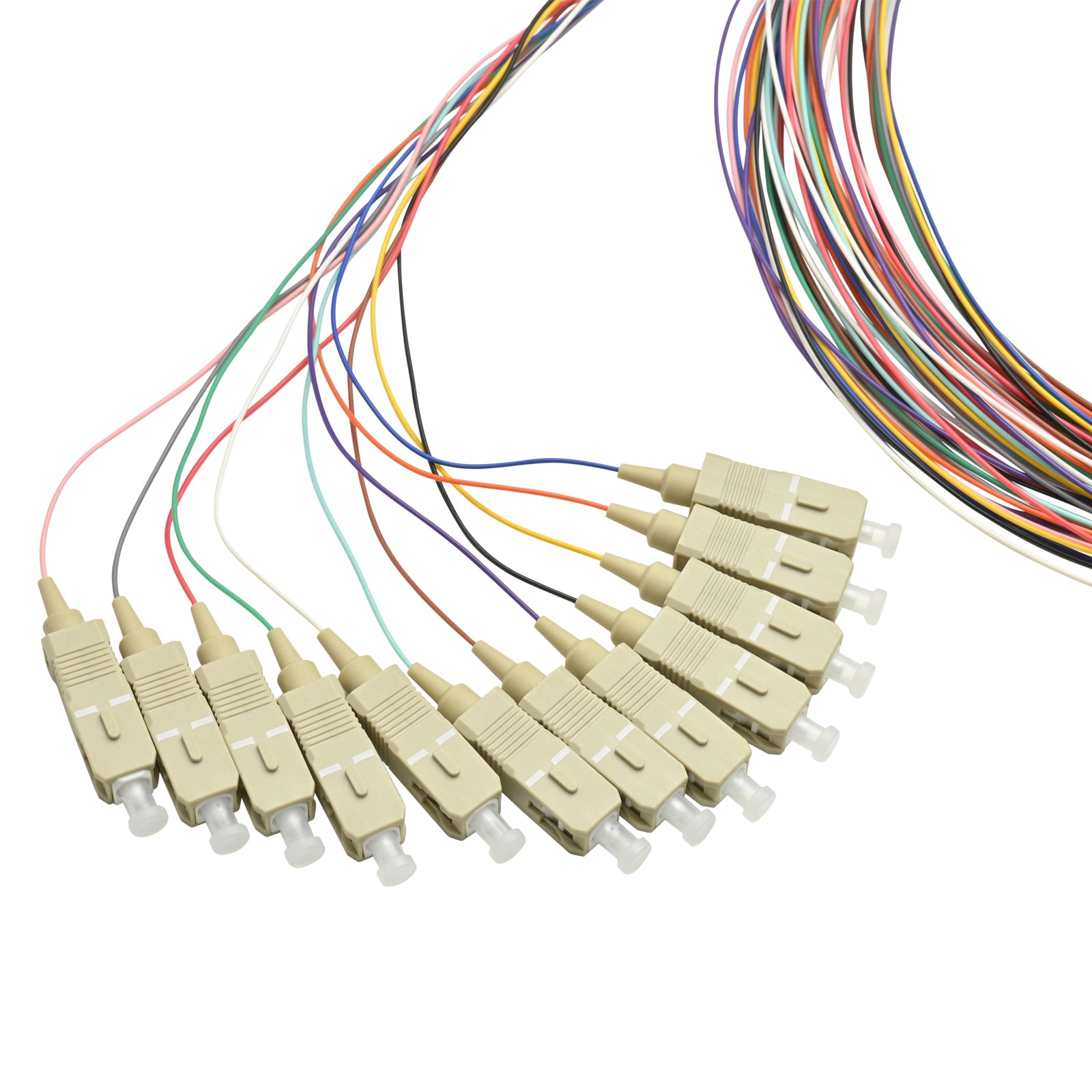

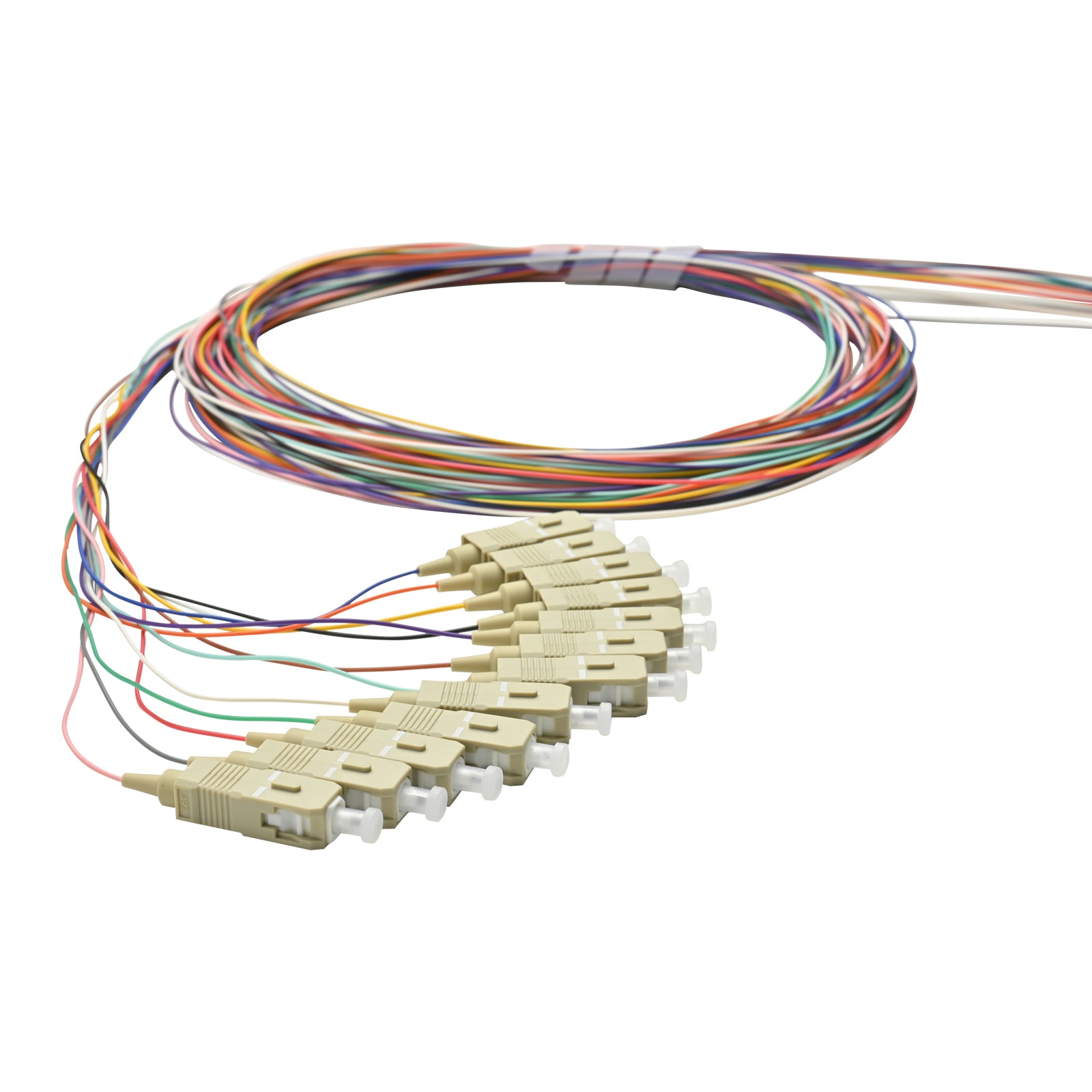

Built for 12-Strand OM3 Backbones
Many offices and schools installed 12-fiber OM3 backbones between telecom rooms. This set matches that cable strand for strand. The colors run blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua. Splicing in sequence keeps port mapping simple.
What OM3 Delivers
OM3 provides an effective modal bandwidth of 2,000 MHz·km at 850 nm. Under IEEE 802.3, it supports 10GBASE-SR to 300 meters and 40GBASE-SR4 to 100 meters. It reaches 100GBASE-SR4 at up to 70 meters. TIA-568 caps cabled attenuation at 3.5 dB/km at 850 nm and 1.5 dB/km at 1300 nm.
Tight Buffer for Busy Enclosures
The 900 µm tight buffer protects each fiber from crushing and sharp bends. It's especially useful in high-count frames, where many pigtails share one tray. Strip it in short sections with a precision tool.
Connector Interface
The SC connector uses a 2.5 mm ceramic ferrule in a square push-pull body that conforms to IEC 61754-4. Its UPC polish forms a slightly domed end face for reliable physical contact. Factory polishing skips the slow, error-prone work of field termination.
Mixing Within the 50 µm Family
OM3, OM4, and OM5 all share a 50 µm core and 125 µm cladding. They splice and mate with each other without a core mismatch. A mixed link runs at the lowest grade's performance, though. If a backbone is OM3, these pigtails match it exactly and keep reach calculations simple.
